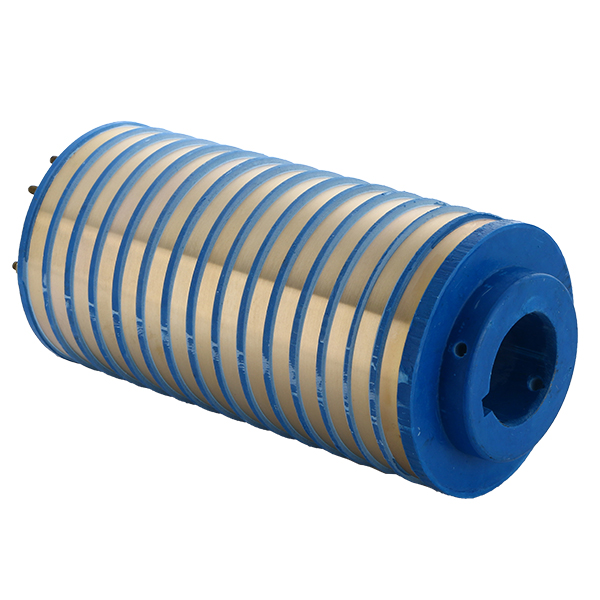

Description:

SRS carbon brush slip ring is a 360-degree contact rotation conduction between carbon brush and slip ring. It can be used in any electromechanical system that requires continuous rotation and the transmission of power and signals from fixed position to rotating position. The slip ring can improve the system performance and simplify the system structure.

Characteristic:

The pressure of each carbon brush is uniform and stable, and the structure ensures the

stability of the carbon brush and smooth contact；

When the slip ring works, it can transmit signal and current stably。

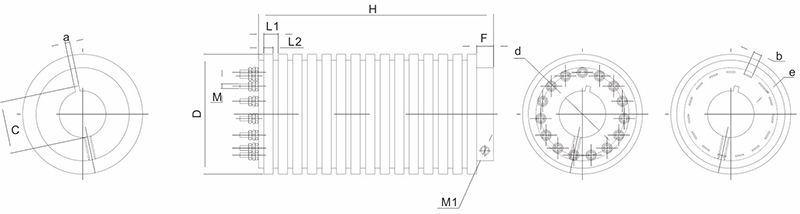

Product Outline Dimension Drawing

Order Model Description

Note: Ø stands for copper cylinders without threads; M stands for screws with threads.

Technical Parameter

Mechanical Technique Indicators		Electrical Technique Indicators
Parameter	Numerical Value	Parameter	Numerical Value
Working Life	10 million RPM reference value(Depending on work)		Power	Signal
Rated Speed	150 rpm	Rated Voltage	0~240VAC/VDC	0~240VAC/VDC
Working Temperature	-30℃~-80℃	Insulation Resistance	≥300MΩ/300VDC	≥300MΩ/300VDC
Working Humidity	0~85%RH	Wire Specification	Reference Selection Table	Reference Selection Table
Contact Material	Metal	Wire Length	Standard Length 300mm（It can be customized）
Shell Material	Engineering Plastic	Insulation Strength	300VAC@50Hz，60S
Moving Torque	0.05N.m+0.02N.m/6 way	Dynamic Resistance Variation	<0.01Ω
Protection Level	IP51

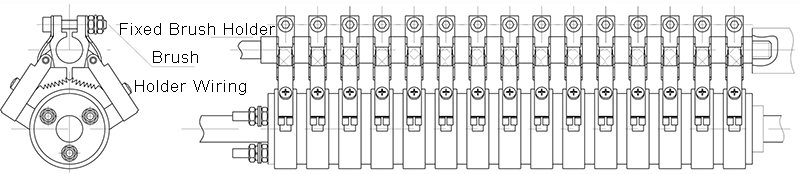

Installation Graphic



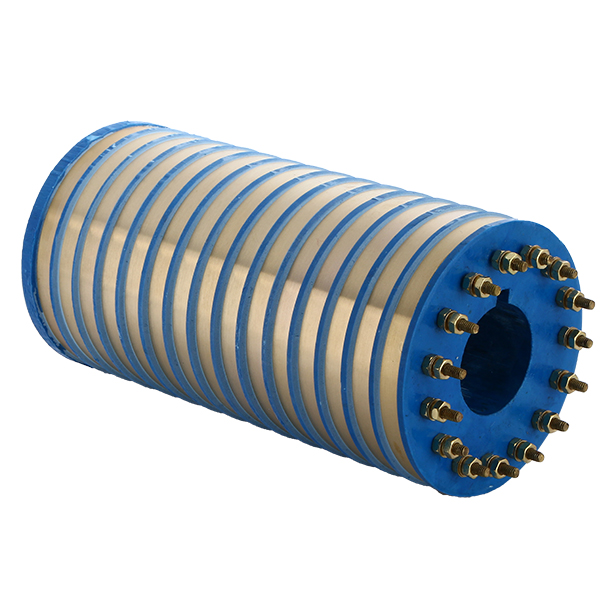

Description:

SRS carbon brush slip ring is a 360-degree contact rotation conduction between carbon brush and slip ring. It can be used in any electromechanical system that requires continuous rotation and the transmission of power and signals from fixed position to rotating position. The slip ring can improve the system performance and simplify the system structure.

Characteristic:

The pressure of each carbon brush is uniform and stable, and the structure ensures the

stability of the carbon brush and smooth contact；

When the slip ring works, it can transmit signal and current stably。

Product Outline Dimension Drawing

Order Model Description

Note: Ø stands for copper cylinders without threads; M stands for screws with threads.

Technical Parameter

Mechanical Technique Indicators		Electrical Technique Indicators
Parameter	Numerical Value	Parameter	Numerical Value
Working Life	10 million RPM reference value(Depending on work)		Power	Signal
Rated Speed	150 rpm	Rated Voltage	0~240VAC/VDC	0~240VAC/VDC
Working Temperature	-30℃~-80℃	Insulation Resistance	≥300MΩ/300VDC	≥300MΩ/300VDC
Working Humidity	0~85%RH	Wire Specification	Reference Selection Table	Reference Selection Table
Contact Material	Metal	Wire Length	Standard Length 300mm（It can be customized）
Shell Material	Engineering Plastic	Insulation Strength	300VAC@50Hz，60S
Moving Torque	0.05N.m+0.02N.m/6 way	Dynamic Resistance Variation	<0.01Ω
Protection Level	IP51

Installation Graphic



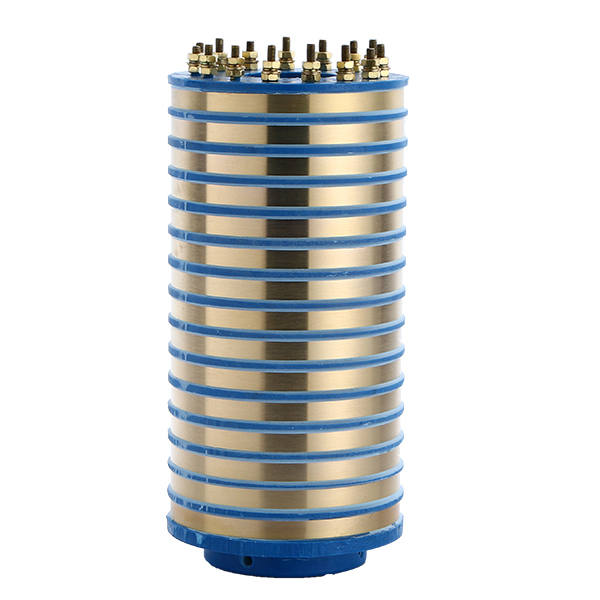

Description:

SRS carbon brush slip ring is a 360-degree contact rotation conduction between carbon brush and slip ring. It can be used in any electromechanical system that requires continuous rotation and the transmission of power and signals from fixed position to rotating position. The slip ring can improve the system performance and simplify the system structure.

Characteristic:

The pressure of each carbon brush is uniform and stable, and the structure ensures the

stability of the carbon brush and smooth contact；

When the slip ring works, it can transmit signal and current stably。

Product Outline Dimension Drawing

Order Model Description

Note: Ø stands for copper cylinders without threads; M stands for screws with threads.

Technical Parameter

Mechanical Technique Indicators		Electrical Technique Indicators
Parameter	Numerical Value	Parameter	Numerical Value
Working Life	10 million RPM reference value(Depending on work)		Power	Signal
Rated Speed	150 rpm	Rated Voltage	0~240VAC/VDC	0~240VAC/VDC
Working Temperature	-30℃~-80℃	Insulation Resistance	≥300MΩ/300VDC	≥300MΩ/300VDC
Working Humidity	0~85%RH	Wire Specification	Reference Selection Table	Reference Selection Table
Contact Material	Metal	Wire Length	Standard Length 300mm（It can be customized）
Shell Material	Engineering Plastic	Insulation Strength	300VAC@50Hz，60S
Moving Torque	0.05N.m+0.02N.m/6 way	Dynamic Resistance Variation	<0.01Ω
Protection Level	IP51

Installation Graphic



Description:

SRS carbon brush slip ring is a 360-degree contact rotation conduction between carbon brush and slip ring. It can be used in any electromechanical system that requires continuous rotation and the transmission of power and signals from fixed position to rotating position. The slip ring can improve the system performance and simplify the system structure.

Characteristic:

The pressure of each carbon brush is uniform and stable, and the structure ensures the

stability of the carbon brush and smooth contact；

When the slip ring works, it can transmit signal and current stably。

Product Outline Dimension Drawing

Order Model Description

Note: Ø stands for copper cylinders without threads; M stands for screws with threads.

Technical Parameter

Mechanical Technique Indicators		Electrical Technique Indicators
Parameter	Numerical Value	Parameter	Numerical Value
Working Life	10 million RPM reference value(Depending on work)		Power	Signal
Rated Speed	150 rpm	Rated Voltage	0~240VAC/VDC	0~240VAC/VDC
Working Temperature	-30℃~-80℃	Insulation Resistance	≥300MΩ/300VDC	≥300MΩ/300VDC
Working Humidity	0~85%RH	Wire Specification	Reference Selection Table	Reference Selection Table
Contact Material	Metal	Wire Length	Standard Length 300mm（It can be customized）
Shell Material	Engineering Plastic	Insulation Strength	300VAC@50Hz，60S
Moving Torque	0.05N.m+0.02N.m/6 way	Dynamic Resistance Variation	<0.01Ω
Protection Level	IP51

Installation Graphic
