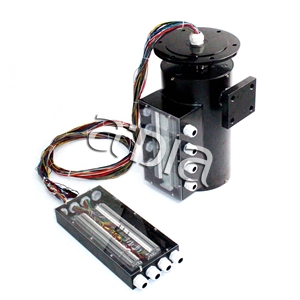

Center collector ring

Central collector is transfer power from a fixed equipment to a device of rotating equipment,through the spring compression carbon brush,make contact withthe copper ring permanent,ensure a steady current conversion.Products are mainly used for relative parts make circular motion of the power transmission andsignal transduction.Example:the port crane,fixed crame with rotation requirement

Slip Ring Number N Value Table

Design Loop	84 rings
Loop Voltage	0~38VAC/240VAC
Loop Current	10A/33 loops;30A/1 rings;                 5A/10 loops; 1A/28 rings;  20mA/12 rings
Contact Material	Nobel Metal

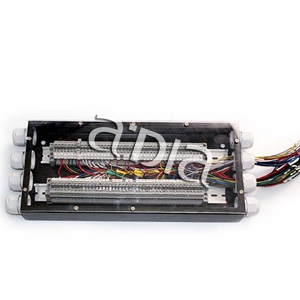

Conductor Length	Stator Wiring 2000mm，Terminal;                     Rotor Wiring, Terminal
Insulation Resistance	≥500MΩ/500VDC
Insulation strength	≥1000V/50Hz.AC 60S
Working Speed	0~300r/min
Working Conditions	Temperature -20℃~+80℃

Center collector ring

Central collector is transfer power from a fixed equipment to a device of rotating equipment,through the spring compression carbon brush,make contact withthe copper ring permanent,ensure a steady current conversion.Products are mainly used for relative parts make circular motion of the power transmission andsignal transduction.Example:the port crane,fixed crame with rotation requirement

Slip Ring Number N Value Table

Design Loop	84 rings
Loop Voltage	0~38VAC/240VAC
Loop Current	10A/33 loops;30A/1 rings;                 5A/10 loops; 1A/28 rings;  20mA/12 rings
Contact Material	Nobel Metal
Conductor Length	Stator Wiring 2000mm，Terminal;                     Rotor Wiring, Terminal
Insulation Resistance	≥500MΩ/500VDC
Insulation strength	≥1000V/50Hz.AC 60S
Working Speed	0~300r/min
Working Conditions	Temperature -20℃~+80℃

Center collector ring

Central collector is transfer power from a fixed equipment to a device of rotating equipment,through the spring compression carbon brush,make contact withthe copper ring permanent,ensure a steady current conversion.Products are mainly used for relative parts make circular motion of the power transmission andsignal transduction.Example:the port crane,fixed crame with rotation requirement

Slip Ring Number N Value Table

Design Loop	84 rings
Loop Voltage	0~38VAC/240VAC
Loop Current	10A/33 loops;30A/1 rings;                 5A/10 loops; 1A/28 rings;  20mA/12 rings
Contact Material	Nobel Metal
Conductor Length	Stator Wiring 2000mm，Terminal;                     Rotor Wiring, Terminal
Insulation Resistance	≥500MΩ/500VDC
Insulation strength	≥1000V/50Hz.AC 60S
Working Speed	0~300r/min
Working Conditions	Temperature -20℃~+80℃

Center collector ring

Central collector is transfer power from a fixed equipment to a device of rotating equipment,through the spring compression carbon brush,make contact withthe copper ring permanent,ensure a steady current conversion.Products are mainly used for relative parts make circular motion of the power transmission andsignal transduction.Example:the port crane,fixed crame with rotation requirement

Slip Ring Number N Value Table

Design Loop	84 rings
Loop Voltage	0~38VAC/240VAC
Loop Current	10A/33 loops;30A/1 rings;                 5A/10 loops; 1A/28 rings;  20mA/12 rings
Contact Material	Nobel Metal
Conductor Length	Stator Wiring 2000mm，Terminal;                     Rotor Wiring, Terminal
Insulation Resistance	≥500MΩ/500VDC
Insulation strength	≥1000V/50Hz.AC 60S
Working Speed	0~300r/min
Working Conditions	Temperature -20℃~+80℃
