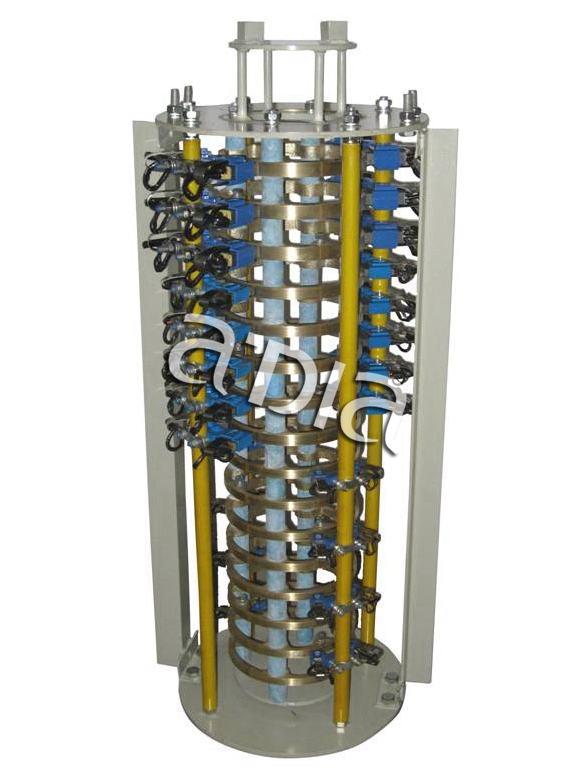

Center collector ring

Central collector is transfer power from a fixed equipment to a device of rotating equipment,through the spring compression carbon brush,make contact withthe copper ring permanent,ensure a steady current conversion.Products are mainly used for relative parts make circular motion of the power transmission andsignal transduction.Example:the port crane,fixed crame with rotation requirement

Slip Ring Number N Value Table

The Slip Ring Current/Collector Type	ZS-C1	ZS-C12	ZS-C3	ZS-C4	ZS-C61	ZS-C62
630A	-	-	1-10	1-10	-	-
400A	1-10	1-10	1-40	1-40	1-50	1-50
63A	1-40	1-40	-	-	1-50	1-50
10A	1-60	1-60	1-60	1-60	-	-

The Size and Current

The transmission way	model	Perforation diameter a	Perforation diameter B	Overall dimensions	Drive claw diameter D	Silp ring current rating
Top drive	ZS-C1(C61)	Φ140	Φ380	Φ425	Φ200	400A	63A	10A
	ZS-C3	Φ190	Φ450	Φ500	Φ260	630A	63A	10A
under drive	ZS-C2(C62)	Φ140	Φ380	Φ425	Φ200	400A	63A	10A
	ZS-C4	Φ140	Φ450	Φ500	Φ260	630A	63A	10A
