The Second Generation of Slip Ring
11 lines Slip rings for Center pivot irrigation system
Application: center pivot sprinkler and pointer type sprinkler
SRV000260-11P/II


Features and Advantages

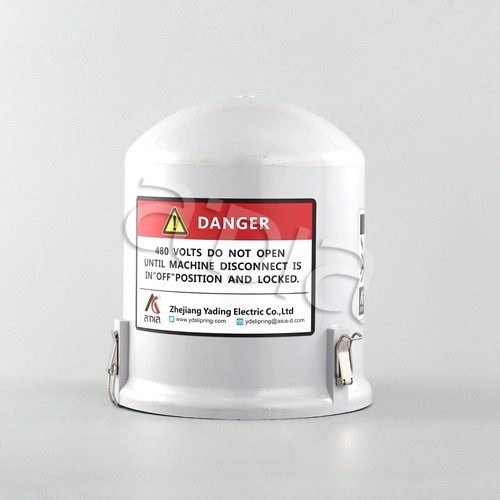

1.Engineer plastic outer cover: Improved the function of impact resistance,weather resistance,UV resistance.
2.Aluminum die cast base: Guarantee the hardness and more portable .

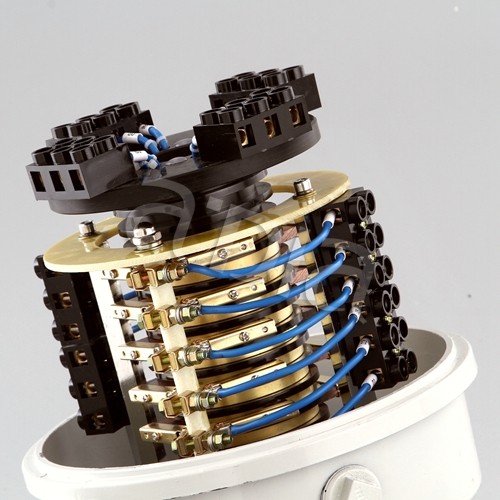

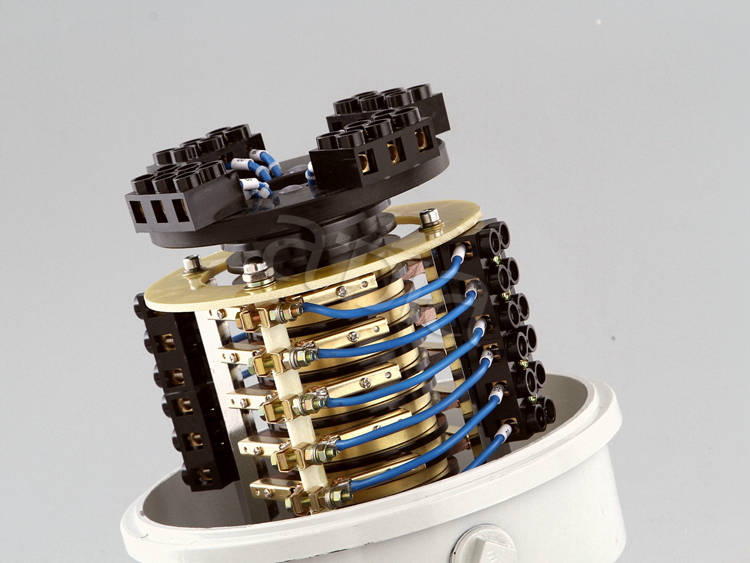

3.Optimized conduction mode: The inside conductive parts connect with carbon brush and copper ring ,
longer working life ,signal transmission stability.
4.More convenient for installation and maintenance:
The rotor wire connection mode change to terminals,be more easier and convenient for installation and maintenance.
The stator wire leads directly,the overall height seems short.
5.High environmental adaptation:
All materials have been treatment by anti corrosion.keep stable operation in harsh climatic conditions,
higher protection degree ,ensure the products perform satisfactorily in rain and snow.

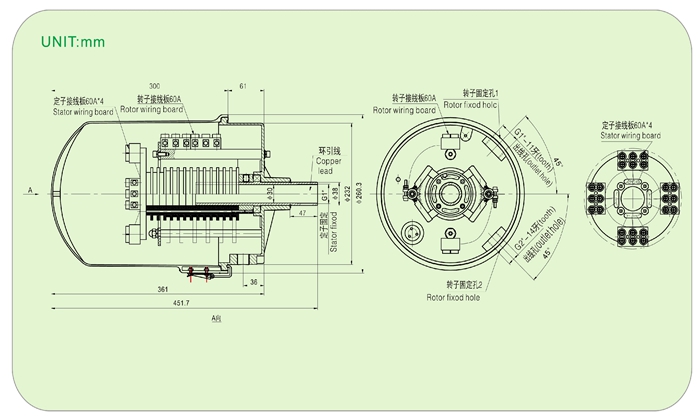

Product Outline
