You are here : Home » Products » Customised Slip Ring

Products Details

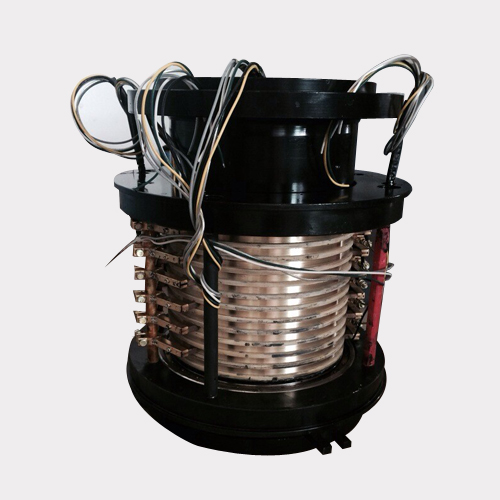

Product name:

CSR35

Product Catalog:

OnLine Service:

ydslipring@hotmail.com

15205771557

【Prev Products】

【Next Products】

Product Details	Online Inquiry	Online Inquiry	Online Inquiry	Online Inquiry

This kind of slip rings are customized according to specific requirements, thus making them complex in structures and advanced in technology mostly applied in military equipments and other large mechanical equipments.

Electrical Technique Indicators

Parameters

Value

Loop Number

12 loop or as required by the clients

Nominal Voltage

380VAC、240VAC/VDC

Rated Current

15A/Loop

Conductor Size

AWG14 tin-plated Teflon insulation wire

Conductor Length

Standard 500mm or according to customer requirements

Insulation Resistance

≥1000MΩ/500VDC

Insulation Length

1500VAC/50Hz,60s

Electrical Noise

＜0.01Ω

Mechanical Technique Indicators

Parameters

Value

Working Speed

0~500rpm

Working Temperature

-20℃～+80℃

Working Humidity

60%RH or higher

Contact Material

Carbon Brush

Casting Material

Aluminium Alloy

Fixation Form

Rotation prevention fixing

Transmission Mode

Transmitted by the axis

Wiring method

IP51
