Products Details

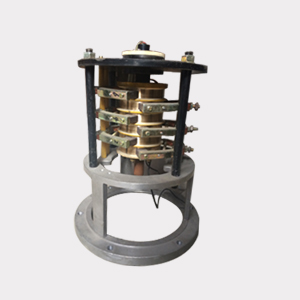

Product name:

CSR8

Product Catalog:

OnLine Service:

ydslipring@hotmail.com

15205771557

【Prev Products】

【Next Products】

Product Details	Online Inquiry	Online Inquiry	Online Inquiry	Online Inquiry

This kind of slip rings are customized according to specific requirements, thus making them complex in structures and advanced in technology mostly applied in military equipments and other large mechanical equipments.

None bore outer diameter of 300mm height 288mm4 Road

Electrical Technique Indicators

Parameters	Value
Loop Number	4 loop or as required by the clients
Nominal Voltage	380VAC、240VAC/VDC
Rated Current	50A/Loop
Conductor Size
Conductor Length
Insulation Resistance	≥1000MΩ/500VDC
Insulation Strength	2000VAC/50Hz,60s
Electrical Noise	＜0.01Ω

Mechanical Technique Indicators

Parameters	Value
Working Speed	0~500rpm
Working Temperature	-20℃～+80℃
Working Humidity	60%RH or higher
Contact Material	Carbon Brush
Casting Material	Organic Glass
Fixation Form	Flange mounting
Transmission Mode	Underdrive
Protection Class	IP51

None bore outer diameter of 300mm height 288mm4 Road

Electrical Technique Indicators

Parameters	Value
Loop Number	4 loop or as required by the clients
Nominal Voltage	380VAC、240VAC/VDC
Rated Current	50A/Loop
Conductor Size
Conductor Length
Insulation Resistance	≥1000MΩ/500VDC
Insulation Strength	2000VAC/50Hz,60s
Electrical Noise	＜0.01Ω

Mechanical Technique Indicators

Parameters	Value
Working Speed	0~500rpm
Working Temperature	-20℃～+80℃
Working Humidity	60%RH or higher
Contact Material	Carbon Brush
Casting Material	Organic Glass
Fixation Form	Flange mounting
Transmission Mode	Underdrive
Protection Class	IP51

None bore outer diameter of 300mm height 288mm4 Road

Electrical Technique Indicators

Parameters	Value
Loop Number	4 loop or as required by the clients
Nominal Voltage	380VAC、240VAC/VDC
Rated Current	50A/Loop
Conductor Size
Conductor Length
Insulation Resistance	≥1000MΩ/500VDC
Insulation Strength	2000VAC/50Hz,60s
Electrical Noise	＜0.01Ω

Mechanical Technique Indicators

Parameters	Value
Working Speed	0~500rpm
Working Temperature	-20℃～+80℃
Working Humidity	60%RH or higher
Contact Material	Carbon Brush
Casting Material	Organic Glass
Fixation Form	Flange mounting
Transmission Mode	Underdrive
Protection Class	IP51

None bore outer diameter of 300mm height 288mm4 Road

Electrical Technique Indicators

Parameters	Value
Loop Number	4 loop or as required by the clients
Nominal Voltage	380VAC、240VAC/VDC
Rated Current	50A/Loop
Conductor Size
Conductor Length
Insulation Resistance	≥1000MΩ/500VDC
Insulation Strength	2000VAC/50Hz,60s
Electrical Noise	＜0.01Ω

Mechanical Technique Indicators

Parameters	Value
Working Speed	0~500rpm
Working Temperature	-20℃～+80℃
Working Humidity	60%RH or higher
Contact Material	Carbon Brush
Casting Material	Organic Glass
Fixation Form	Flange mounting
Transmission Mode	Underdrive
Protection Class	IP51
