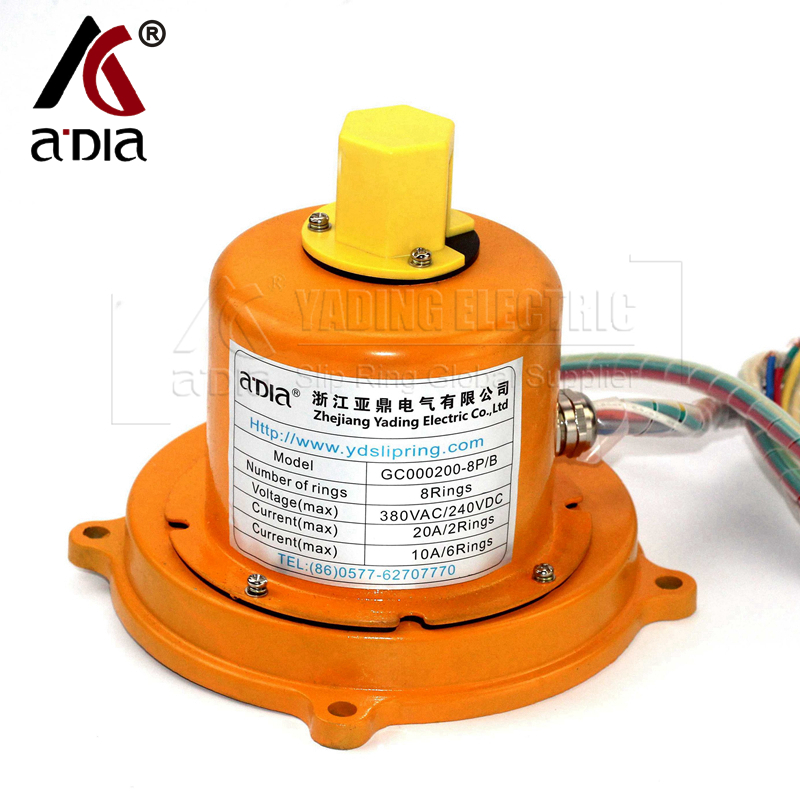

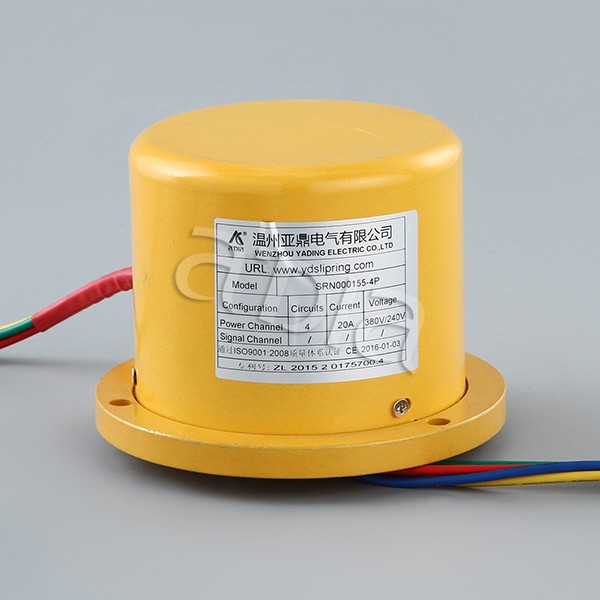

Engineering Machinery Slip Ring
Electrical Technique Indicators
Parameters
|
Value
|
Loop Number
|
2loops or as required by the clients
|
Nominal Voltage
|
380VAC、240VAC/VDC
|
Rated Current
|
20A/loop
|
Conductor Size
|
14AWG
|
Conductor Length
|

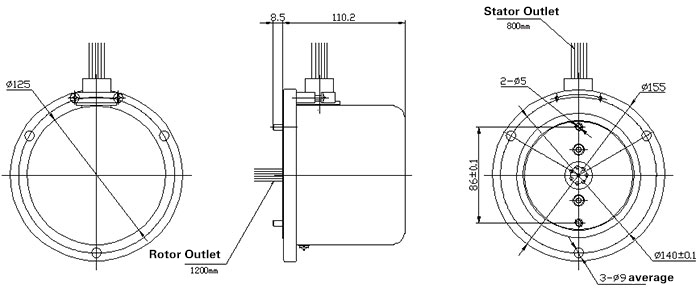

800mm for stators, 1200mm for rotors
|
Insulation Resistance
|
≥500MΩ/1000VDC
|
Insulation Strength
|
1000VAC/50Hz,60s
|
Electrical Noise
|
<0.01Ω
|
Mechanical Technique Indicators
Parameters
|
Value
|
Working Speed
|
0~250rpm
|
Working Temperature
|
-40℃~+80℃
|
Working Humidity
|
95%RH or higher
|
Contact Material
|
Nobel Metal
|
Casting Material
|
A3 Steel
|
Fixation Form
|
Fixed with installation halls
|
Transmission Mode
|
Lower Transmission
|
Protection Class
|
IP68
|
