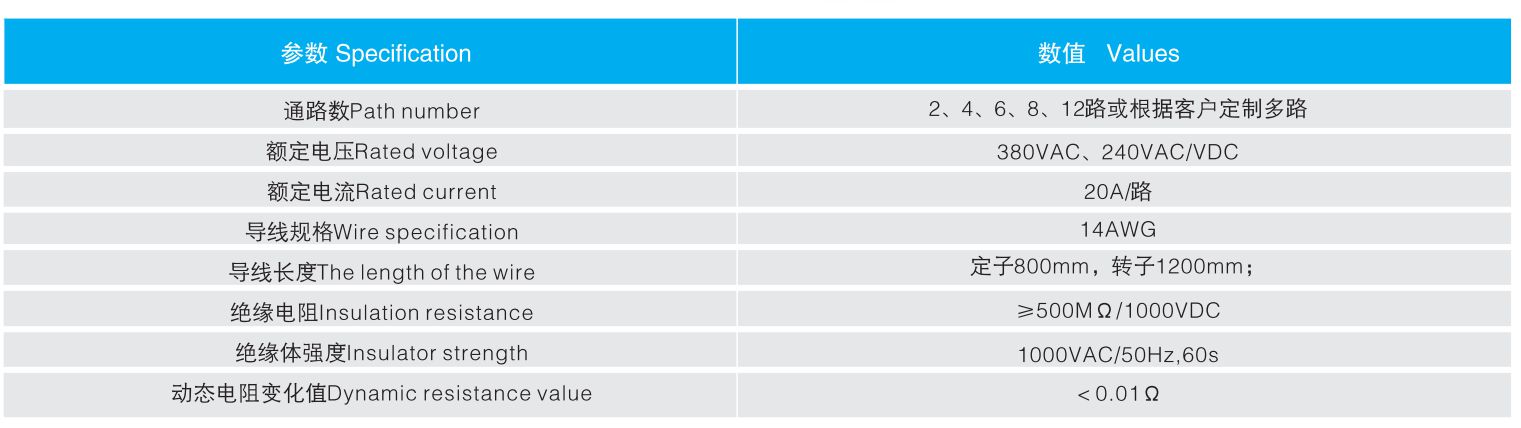

Parameter value:
Number of channels :2 or customized according to customer
Rated voltage: 380VAC, 240VAC / VDC
Rated current :20A / way
Wire size :14AWG
Wire length stator :800mm, rotor :1200mm;
Insulation resistance ≥ 500MΩ / 1000VDC
Insulator strength :1000VAC / 50Hz, 60s
Dynamic resistance change value <0.01Ω

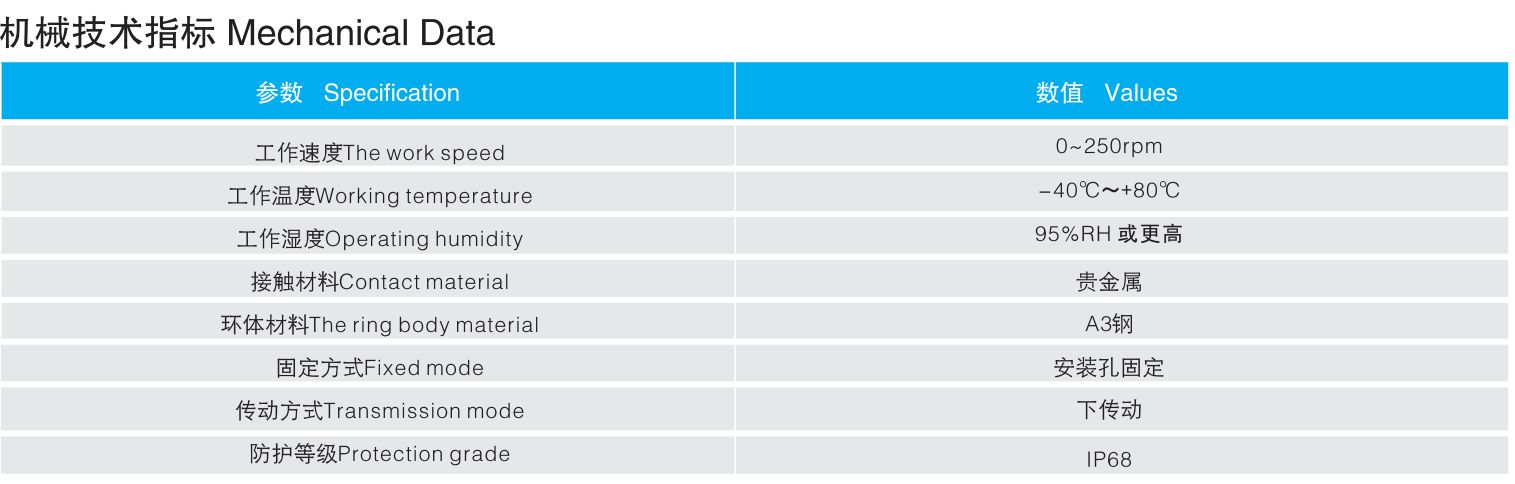

Mechanical technical indicators
Parameter value
Working speed :0 ~ 250rpm
Operating temperature :-40 ℃ ~ +80 ℃
Operating humidity :95% RH or higher
Contact material :precious metal
Shell material: A3 steel
Fixed mounting holes are fixed
Drive mode drive
Protection class :IP68
