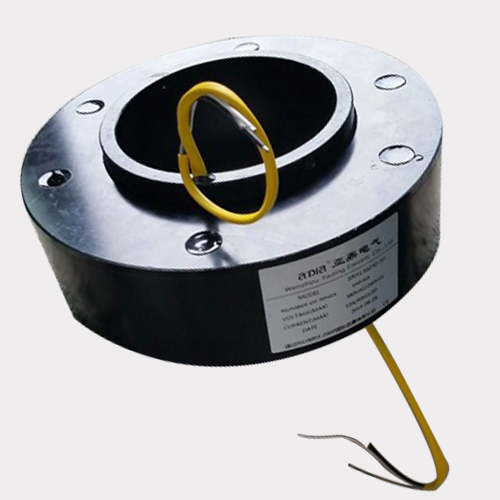

Features

Available for transmitting power signals, control signals and digital signals for unlimited rotation for 360 degrees; advance technique of fiber brushing ensures no need for maintenance and lubricating oil; frequent contacts on each loop, low contacting pressure, low noise, low contacting wear, ultra-long service life; standard and modularized design, complete product specifications, able to provide customized products.

Options

Rated current, voltage, rated speed, working temperature, loop number, casting material and color, boundary dimension, special conductor, conductor feed direction, conductor length, protection class, terminal type.

Applications

Industrial machinery-processing centers, rotary tables, heavy equipment towers, cable reels, testing equipments, packaging equipments, stackers, magnetic clutches, process control equipments, rotation sensors, emergency lighting, robots, exhibition/display equipments, medical equipments.

Parameters

Value

Nominal Voltage

AC380V/DC220V

Rated Current

10A/路

10A/Loop

Conductor Size

AWG16

Conductor Length

300mm

Insulation Resistance

≥500MΩ/1000VDC

Power Frequency Withstand Voltage

1000V/50Hz.AC60s

Electrical Noise

＜0.01Ω

Parameters

Value

Working Speed

300rpm

Working Temperature

60% RH or higher

Working Humidity

-40~+80°C

Contact Material

Nobel Metal

Casting Material

Aluminium Alloy

Torque

Protection Class

IP51
