You are here : Home » Products » Through Bore Slip Ring

Products Details

Product name:

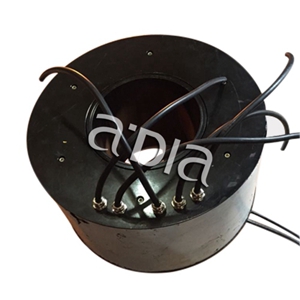

SRH250550-5P

Product Catalog:

Through Bore Slip Ring

OnLine Service:

ydslipring@hotmail.com

15205771557

【Prev Products】

【Next Products】

Product Details	Online Inquiry	Online Inquiry	Online Inquiry	Online Inquiry

Features

Available for transmitting the images and data for unlimited rotation for 360 degrees, featuring low noise, long service life, small operating torque, smooth operation, ultralow electrical noise of less than 0.01Ω, small volume, and compact structure

Options

Loop number, casting material, protection class, more rotations, conductor length, terminal connector, special conductor, salt spray proofing, working temperature, reversible casting.

Applications

Closed-circuit monitoring clouds, mechanical arms, medical equipments, rotary tables, assembly line productions, industrial control equipments

SRH250550-5P

Electrical Technique Indicators

Parameters	Value
Nominal Voltage	0-380VAC/240VDC
Rated Current	120A/Loop
Conductor Size
Conductor Length	300mm
Insulation Resistance	≥500MΩ/1000VDC
Power Frequency Withstand Voltage	≥1500V/50Hz.AC 60S
Electrical Noise	＜0.01Ω

Mechanical Technique Indicators

Parameters	Value
Working Speed	0--300rpm
Working Temperature	-20°C～+80°C
Working Humidity	60% RH or higher
Contact Material	Contacted with carbon brush
Casting Material	Aluminium Alloy
Torque
Protection Class	IP51

Features

Options

Loop number, casting material, protection class, more rotations, conductor length, terminal connector, special conductor, salt spray proofing, working temperature, reversible casting.

Applications

Closed-circuit monitoring clouds, mechanical arms, medical equipments, rotary tables, assembly line productions, industrial control equipments

SRH250550-5P

Electrical Technique Indicators

Parameters	Value
Nominal Voltage	0-380VAC/240VDC
Rated Current	120A/Loop
Conductor Size
Conductor Length	300mm
Insulation Resistance	≥500MΩ/1000VDC
Power Frequency Withstand Voltage	≥1500V/50Hz.AC 60S
Electrical Noise	＜0.01Ω

Mechanical Technique Indicators

Parameters	Value
Working Speed	0--300rpm
Working Temperature	-20°C～+80°C
Working Humidity	60% RH or higher
Contact Material	Contacted with carbon brush
Casting Material	Aluminium Alloy
Torque
Protection Class	IP51

Features

Options

Loop number, casting material, protection class, more rotations, conductor length, terminal connector, special conductor, salt spray proofing, working temperature, reversible casting.

Applications

Closed-circuit monitoring clouds, mechanical arms, medical equipments, rotary tables, assembly line productions, industrial control equipments

SRH250550-5P

Electrical Technique Indicators

Parameters	Value
Nominal Voltage	0-380VAC/240VDC
Rated Current	120A/Loop
Conductor Size
Conductor Length	300mm
Insulation Resistance	≥500MΩ/1000VDC
Power Frequency Withstand Voltage	≥1500V/50Hz.AC 60S
Electrical Noise	＜0.01Ω

Mechanical Technique Indicators

Parameters	Value
Working Speed	0--300rpm
Working Temperature	-20°C～+80°C
Working Humidity	60% RH or higher
Contact Material	Contacted with carbon brush
Casting Material	Aluminium Alloy
Torque
Protection Class	IP51

Features

Options

Loop number, casting material, protection class, more rotations, conductor length, terminal connector, special conductor, salt spray proofing, working temperature, reversible casting.

Applications

Closed-circuit monitoring clouds, mechanical arms, medical equipments, rotary tables, assembly line productions, industrial control equipments

SRH250550-5P

Electrical Technique Indicators

Parameters	Value
Nominal Voltage	0-380VAC/240VDC
Rated Current	120A/Loop
Conductor Size
Conductor Length	300mm
Insulation Resistance	≥500MΩ/1000VDC
Power Frequency Withstand Voltage	≥1500V/50Hz.AC 60S
Electrical Noise	＜0.01Ω

Mechanical Technique Indicators

Parameters	Value
Working Speed	0--300rpm
Working Temperature	-20°C～+80°C
Working Humidity	60% RH or higher
Contact Material	Contacted with carbon brush
Casting Material	Aluminium Alloy
Torque
Protection Class	IP51
