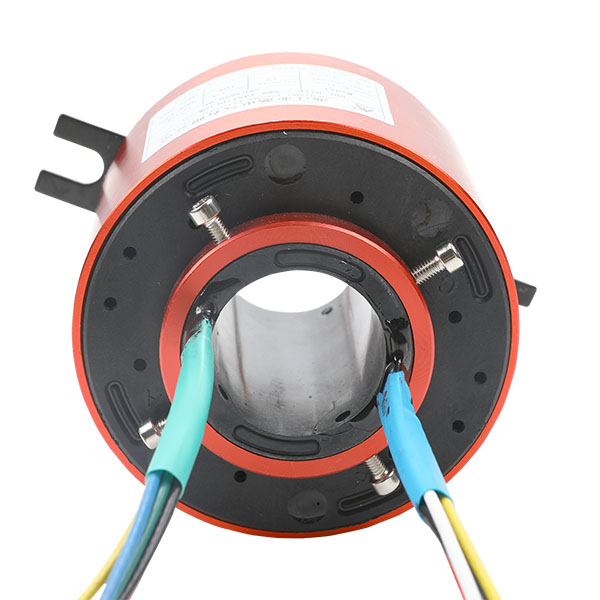

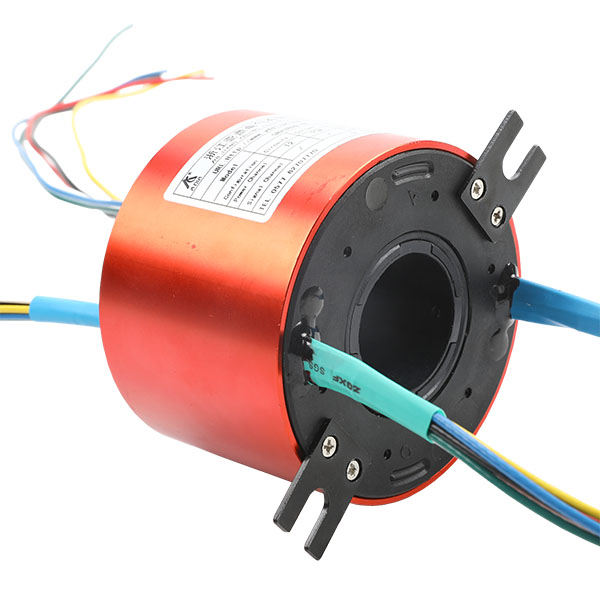

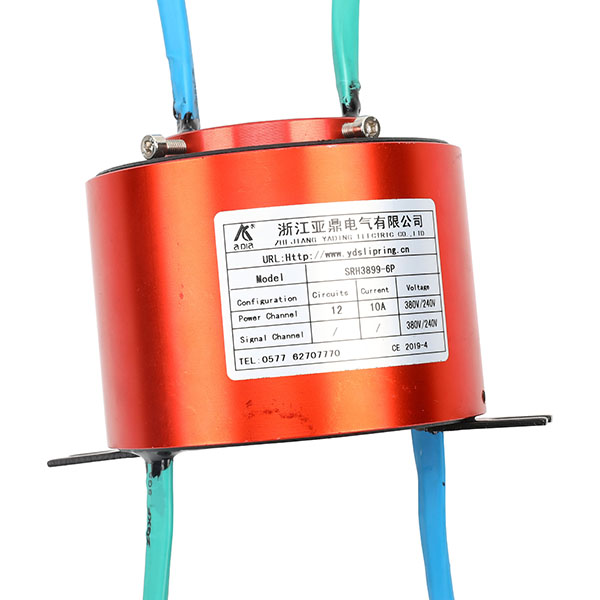

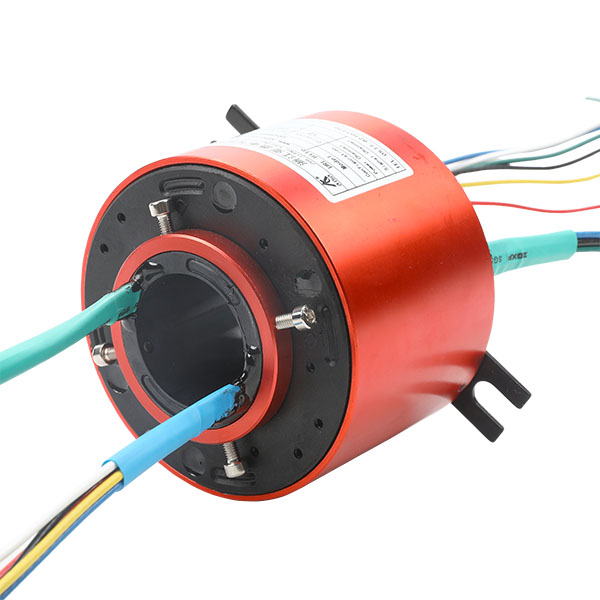

Series SRH3899

Electrical Technique Indicators

Parameters	Value
Parameters	Power	Signal
Nominal Voltage	380VAC	240VAC/VDC
Insulation Resistance	≥1000MΩ/500VDC	≥500MΩ/500VDC
Conductor Size	AWG16 Tin-plated Teflon or PVC insulation wires	AWG22 Tin-plated Teflon Insulation wires
Conductor Length	Standard 300mm
Insulation strength	500VAC@50Hz,60s
Electrical Noise	＜0.01Ω

Mechanical Technique Indicators

Parameters	Value
	Power	Signal
Working Speed	0-800rpm(or higher)
Working Temperature	-20℃-+80℃ or -40℃-+80℃
Working Humidity	60% RH or higher
Contact Material	Nobel Metal
Casting Material	Industrial Metal
Operating Torque	0.1N/m for 6 rings, the torque increases with each 6 rings
保护等级 Protection Class	IP51

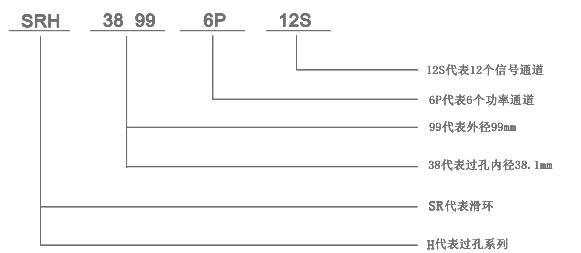

Specification Table

Type	Length L	Current		Ring Number
Type	Length L	Power(10A)	Signal(5A)	Ring Number
SRH3899-6P	55	6	/	6
SRH3899-12S	79	/	12	12
SRH3899-12P	79	12	/	12
SRH3899-6P/12S	103	6	12	18
SRH3899-24S	127	/	24	24
SRH3899-18P	103	18	/	18
SRH3899--12P/12S	127	12	12	24
SRH3899-6P/24S	151	6	24	30
SRH3899-36S	175	/	36	36
SRH3899-24P	127	24	/	24
SRH3899--18P/12S	151	18	12	30
SRH3899-12P/24S	175	12	24	36
SRH3899-6P/36S	203	6	36	42
SRH3899-48S	223	/	48	48

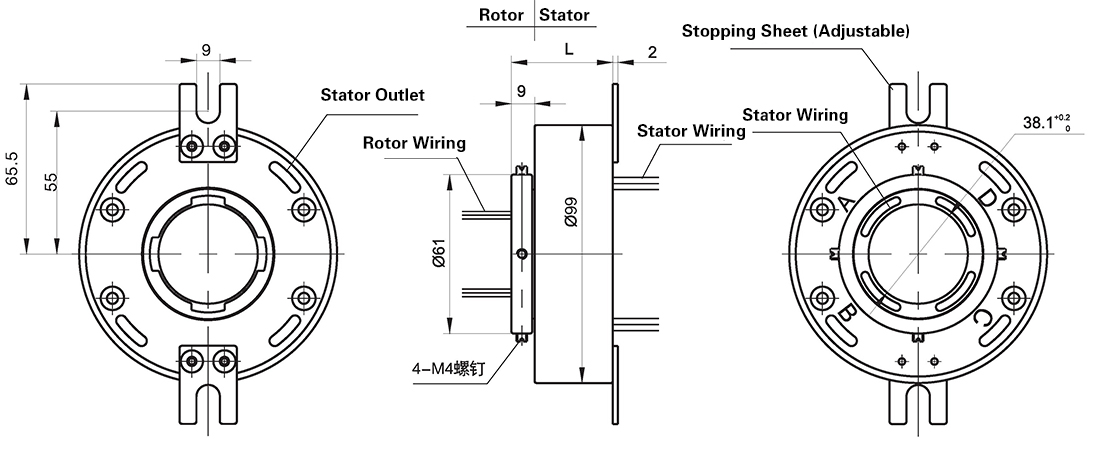

Shape dimension figure

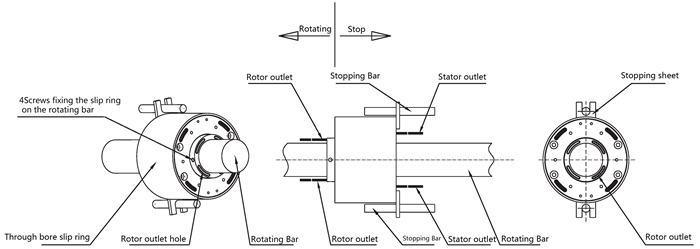

Installation Graphic

Notes

1. The rings should bear no weights, and the conductors should bear no external forces.

2. The conductors should be well protected to avoid damage of the insulating layer and malfunction of the product in installation.

3. Slip rings are precision electrical equipments and should be placed in dry and dust-free environment. Precautions should be taken in harsh situations.

Series SRH3899

Electrical Technique Indicators

Parameters	Value
Parameters	Power	Signal
Nominal Voltage	380VAC	240VAC/VDC
Insulation Resistance	≥1000MΩ/500VDC	≥500MΩ/500VDC
Conductor Size	AWG16 Tin-plated Teflon or PVC insulation wires	AWG22 Tin-plated Teflon Insulation wires
Conductor Length	Standard 300mm
Insulation strength	500VAC@50Hz,60s
Electrical Noise	＜0.01Ω

Mechanical Technique Indicators

Parameters	Value
	Power	Signal
Working Speed	0-800rpm(or higher)
Working Temperature	-20℃-+80℃ or -40℃-+80℃
Working Humidity	60% RH or higher
Contact Material	Nobel Metal
Casting Material	Industrial Metal
Operating Torque	0.1N/m for 6 rings, the torque increases with each 6 rings
保护等级 Protection Class	IP51

Specification Table

Type	Length L	Current		Ring Number
Type	Length L	Power(10A)	Signal(5A)	Ring Number
SRH3899-6P	55	6	/	6
SRH3899-12S	79	/	12	12
SRH3899-12P	79	12	/	12
SRH3899-6P/12S	103	6	12	18
SRH3899-24S	127	/	24	24
SRH3899-18P	103	18	/	18
SRH3899--12P/12S	127	12	12	24
SRH3899-6P/24S	151	6	24	30
SRH3899-36S	175	/	36	36
SRH3899-24P	127	24	/	24
SRH3899--18P/12S	151	18	12	30
SRH3899-12P/24S	175	12	24	36
SRH3899-6P/36S	203	6	36	42
SRH3899-48S	223	/	48	48

Shape dimension figure

Installation Graphic

Notes

1. The rings should bear no weights, and the conductors should bear no external forces.

2. The conductors should be well protected to avoid damage of the insulating layer and malfunction of the product in installation.

3. Slip rings are precision electrical equipments and should be placed in dry and dust-free environment. Precautions should be taken in harsh situations.

Series SRH3899

Electrical Technique Indicators

Parameters	Value
Parameters	Power	Signal
Nominal Voltage	380VAC	240VAC/VDC
Insulation Resistance	≥1000MΩ/500VDC	≥500MΩ/500VDC
Conductor Size	AWG16 Tin-plated Teflon or PVC insulation wires	AWG22 Tin-plated Teflon Insulation wires
Conductor Length	Standard 300mm
Insulation strength	500VAC@50Hz,60s
Electrical Noise	＜0.01Ω

Mechanical Technique Indicators

Parameters	Value
	Power	Signal
Working Speed	0-800rpm(or higher)
Working Temperature	-20℃-+80℃ or -40℃-+80℃
Working Humidity	60% RH or higher
Contact Material	Nobel Metal
Casting Material	Industrial Metal
Operating Torque	0.1N/m for 6 rings, the torque increases with each 6 rings
保护等级 Protection Class	IP51

Specification Table

Type	Length L	Current		Ring Number
Type	Length L	Power(10A)	Signal(5A)	Ring Number
SRH3899-6P	55	6	/	6
SRH3899-12S	79	/	12	12
SRH3899-12P	79	12	/	12
SRH3899-6P/12S	103	6	12	18
SRH3899-24S	127	/	24	24
SRH3899-18P	103	18	/	18
SRH3899--12P/12S	127	12	12	24
SRH3899-6P/24S	151	6	24	30
SRH3899-36S	175	/	36	36
SRH3899-24P	127	24	/	24
SRH3899--18P/12S	151	18	12	30
SRH3899-12P/24S	175	12	24	36
SRH3899-6P/36S	203	6	36	42
SRH3899-48S	223	/	48	48

Shape dimension figure

Installation Graphic

Notes

1. The rings should bear no weights, and the conductors should bear no external forces.

2. The conductors should be well protected to avoid damage of the insulating layer and malfunction of the product in installation.

3. Slip rings are precision electrical equipments and should be placed in dry and dust-free environment. Precautions should be taken in harsh situations.

Series SRH3899

Electrical Technique Indicators

Parameters	Value
Parameters	Power	Signal
Nominal Voltage	380VAC	240VAC/VDC
Insulation Resistance	≥1000MΩ/500VDC	≥500MΩ/500VDC
Conductor Size	AWG16 Tin-plated Teflon or PVC insulation wires	AWG22 Tin-plated Teflon Insulation wires
Conductor Length	Standard 300mm
Insulation strength	500VAC@50Hz,60s
Electrical Noise	＜0.01Ω

Mechanical Technique Indicators

Parameters	Value
	Power	Signal
Working Speed	0-800rpm(or higher)
Working Temperature	-20℃-+80℃ or -40℃-+80℃
Working Humidity	60% RH or higher
Contact Material	Nobel Metal
Casting Material	Industrial Metal
Operating Torque	0.1N/m for 6 rings, the torque increases with each 6 rings
保护等级 Protection Class	IP51

Specification Table

Type	Length L	Current		Ring Number
Type	Length L	Power(10A)	Signal(5A)	Ring Number
SRH3899-6P	55	6	/	6
SRH3899-12S	79	/	12	12
SRH3899-12P	79	12	/	12
SRH3899-6P/12S	103	6	12	18
SRH3899-24S	127	/	24	24
SRH3899-18P	103	18	/	18
SRH3899--12P/12S	127	12	12	24
SRH3899-6P/24S	151	6	24	30
SRH3899-36S	175	/	36	36
SRH3899-24P	127	24	/	24
SRH3899--18P/12S	151	18	12	30
SRH3899-12P/24S	175	12	24	36
SRH3899-6P/36S	203	6	36	42
SRH3899-48S	223	/	48	48

Shape dimension figure

Installation Graphic

Notes

1. The rings should bear no weights, and the conductors should bear no external forces.

2. The conductors should be well protected to avoid damage of the insulating layer and malfunction of the product in installation.

3. Slip rings are precision electrical equipments and should be placed in dry and dust-free environment. Precautions should be taken in harsh situations.
