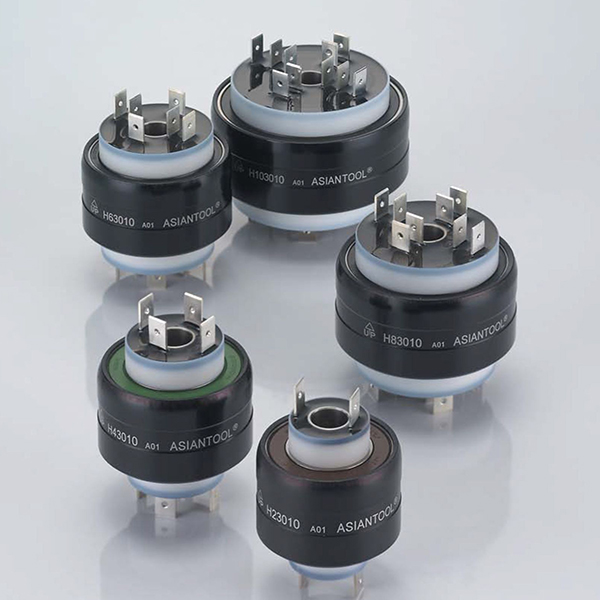

Through Bore Multi Conductors(10.2mm)

Introduction

The rotating electrical connectors are using the special insulation, sealing, and conductive technologies. The out case
material is the aluminumalloy or stainless steel. They are used for any kind of rotating objects of signals like micro voltage, current,
EMF, thermo couple, strain gauge, aduio,video, high frequency etc. and electric power connections. All types of our liquid metal
rotary connectors support CE RoHS compliance. Please contact us for detail.

Characteristic

Very low electric noise     Very low cost      Very low cost      Suitable for signal and power transfer of rotating devices or instruments

No maintenance and better reliability than traditional slig rings     Very low contact resistance (Less than 1mΩ)

Application

Index table for signal and power connection    Resistor cutting machine     Electro plating line     Rotary stage     Cable wheel

Circle knitting machine     Coloring device     Robots     Rotary lamp box     Surgical lampReel to reel plating line equipment

Speed dome camera      Package machine     Heating roller     Laminating machine     Winding machine     Spinning LED sign board

Wind Turbines     Pipe inspection Camera     Welding machines.

Specification

Model	Through -bore	Conductor Poles	Current Amp.	Voltage AC/V	Max. Freq. MHZ	Max. RPM	Operating Temp. Max/Min ℃	Rotating Torque(gm-cm)	Insulation Resistance

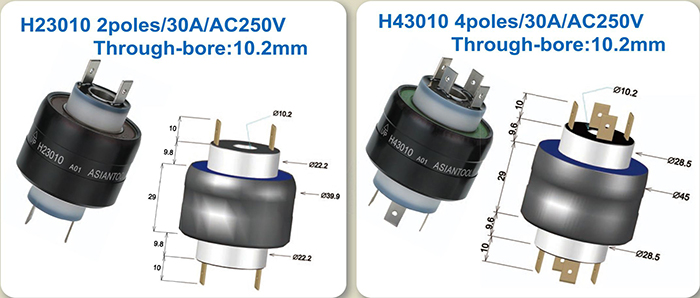

H23010	10.2mm	2	30	250	100	150	60/-30	700	>25MΩ
H43010	10.2mm	4	30	250	100	100	60/-30	1000	>25MΩ

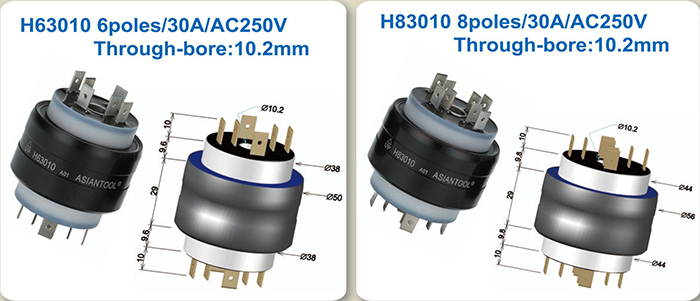

H63010	10.2mm	6	30	250	100	60	60/-30	1500	>25MΩ
H83010	10.2mm	8	30	250	100	40	60/-30	2000	>25MΩ

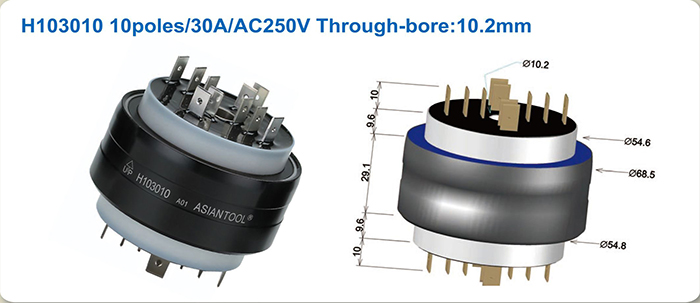

H103010	10.2mm	10	30	250	100	20	60/-30	3000	>25MΩ

Model, Size, accessories

Specification

Model	Conductor Poles	Current Amp.	Voltage AC/V	Max. Freq. MHZ	Max. RPM	Operating Temp. Max/Min ℃	Rotating Torque(gm-cm)	Insulation Resistance

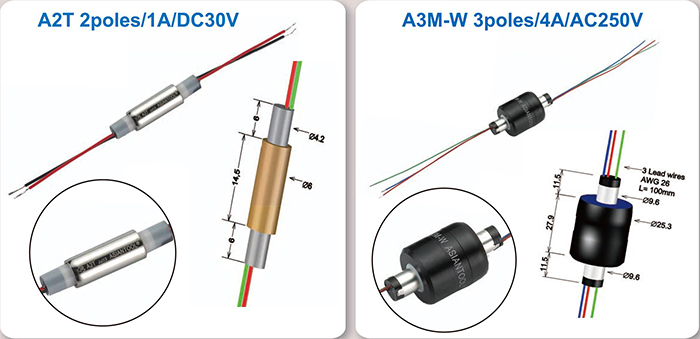

A2T	2	1	DC30V	200	50	60/-30	30	>2MΩ
A3M-W	3	4	250	200	1800	60/-30	200	>25MΩ

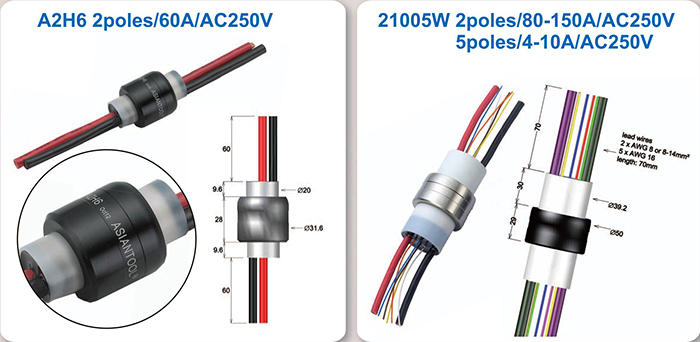

A2H6	2	60	250	100	300	60/-30	700	>25MΩ
21005W	7	100/4	250	100	100	60/-30	1500	>25MΩ
