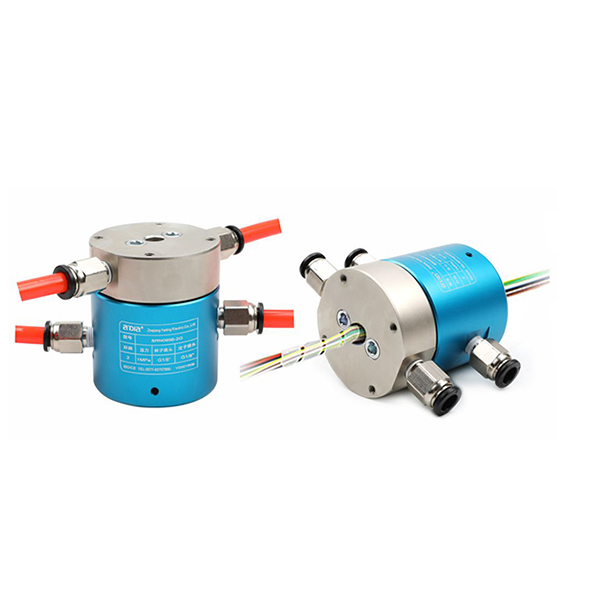

Features

Mixed power power line, signal line, Ethernet, USB, industrial bus, control line, solenoid valve, induction line, etc.
Standard flange installation form, can be customized hollow shaft installation;
The medium that can pass through are: compressed air, hydrogen, nitrogen, chemical mixture gas, steam, cooling water, hot water, hot oil, petroleum, sulfuric acid, beverage, etc.

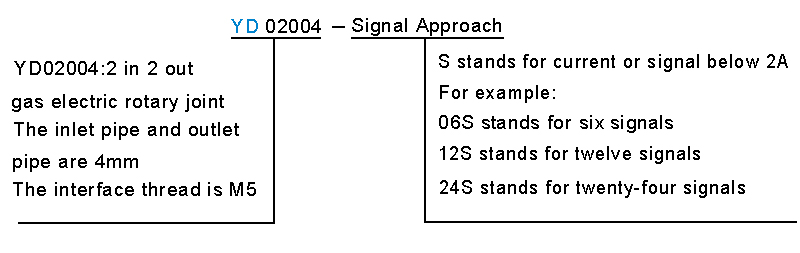

Order model description

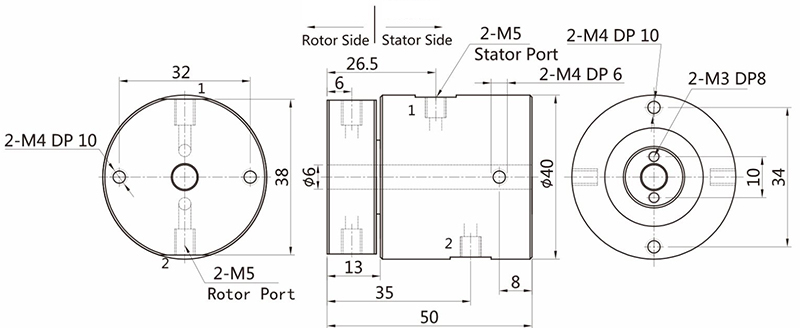

YD02004（2 in 2 out，4mm trachea，Pure pneumatic rotary joint）Size chart

List of Standard Models

Model	Number of the trachea	Interface size	Adaptive trachea
YD02004	2 in 2 out	M5	4~6mm

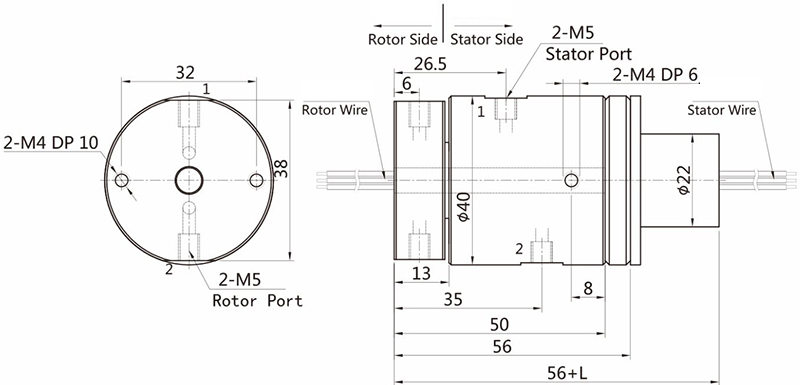

YD02004（2 in 2 out，4mm trachea）+6~36 road signal/2A(Adapts to battery valves and induction switches)

List of Standard Models

Model	Number of the trachea	Interface size	Adaptive trachea	Signal approach	Length（mm）
YD02004-06S	2 in 2 out	M5	4~6mm	6	14
YD02004-12S	2 in 2 out	M5	4~6mm	12	21
YD02004-24s	2 in 2 out	M5	4~6mm	24	35
YD02004-36s	2 in 2 out	M5	4~6mm	36	52

Technical parameters

Number of the trachea	2 in 2 out	Maximum pressure	Positive pressure：1Mpa，vacuo：-100kpa
Number of the trachea	4mm trachea M5 tooth	Torque	<0.2N.m
	Mechanical Technique Indicators		Electrical Technique Indicators
Parameter	Numerical	Parameter	Numerical
Working life	20 million turn		Power	Signal
Highest speed	Continuous rotation 250/ min, intermittent rotation 1000/min	Nomina Voltage	0-240VAC/VDC	0-240VAC/VDC
Working  temperature	-30℃~80℃	Insulation resistance	<500MΩ/300VDC	<500MΩ/300VDC
Working humidity	0-85%RH	Wire specifications	AWG26#Silver-plated Teflon	AWG26#Silver-plated Teflon
Contact materials	Precious metal contact	Wire length	Standard length 250mm (can be adjusted according to requirements)
Case material	Aluminum alloy	Dielectric strength	500VAC@50Hz，6s
Protection grade	IP51	Dynamic resistance change value	<0.01Ω

Table of color code of each ring wire of the electric slip ring

Circuit	1	2	3	4	5	6	7	8	9	10	11	12
Color code	Black	Red	Yellow	Green	Blue	White	Black	Red	Yellow	Green	Blue	White
Circuit	13	14	15	16	17	18	19	20	21	22	23	24
Color code	Black	Red	Yellow	Green	Blue	White	Black	Red	Yellow	Green	Blue	White

Features

Mixed power power line, signal line, Ethernet, USB, industrial bus, control line, solenoid valve, induction line, etc.
Standard flange installation form, can be customized hollow shaft installation;
The medium that can pass through are: compressed air, hydrogen, nitrogen, chemical mixture gas, steam, cooling water, hot water, hot oil, petroleum, sulfuric acid, beverage, etc.

Order model description

YD02004（2 in 2 out，4mm trachea，Pure pneumatic rotary joint）Size chart

List of Standard Models

Model	Number of the trachea	Interface size	Adaptive trachea
YD02004	2 in 2 out	M5	4~6mm

YD02004（2 in 2 out，4mm trachea）+6~36 road signal/2A(Adapts to battery valves and induction switches)

List of Standard Models

Model	Number of the trachea	Interface size	Adaptive trachea	Signal approach	Length（mm）
YD02004-06S	2 in 2 out	M5	4~6mm	6	14
YD02004-12S	2 in 2 out	M5	4~6mm	12	21
YD02004-24s	2 in 2 out	M5	4~6mm	24	35
YD02004-36s	2 in 2 out	M5	4~6mm	36	52

Technical parameters

Number of the trachea	2 in 2 out	Maximum pressure	Positive pressure：1Mpa，vacuo：-100kpa
Number of the trachea	4mm trachea M5 tooth	Torque	<0.2N.m
	Mechanical Technique Indicators		Electrical Technique Indicators
Parameter	Numerical	Parameter	Numerical
Working life	20 million turn		Power	Signal
Highest speed	Continuous rotation 250/ min, intermittent rotation 1000/min	Nomina Voltage	0-240VAC/VDC	0-240VAC/VDC
Working  temperature	-30℃~80℃	Insulation resistance	<500MΩ/300VDC	<500MΩ/300VDC
Working humidity	0-85%RH	Wire specifications	AWG26#Silver-plated Teflon	AWG26#Silver-plated Teflon
Contact materials	Precious metal contact	Wire length	Standard length 250mm (can be adjusted according to requirements)
Case material	Aluminum alloy	Dielectric strength	500VAC@50Hz，6s
Protection grade	IP51	Dynamic resistance change value	<0.01Ω

Table of color code of each ring wire of the electric slip ring

Circuit	1	2	3	4	5	6	7	8	9	10	11	12
Color code	Black	Red	Yellow	Green	Blue	White	Black	Red	Yellow	Green	Blue	White
Circuit	13	14	15	16	17	18	19	20	21	22	23	24
Color code	Black	Red	Yellow	Green	Blue	White	Black	Red	Yellow	Green	Blue	White

Features

Mixed power power line, signal line, Ethernet, USB, industrial bus, control line, solenoid valve, induction line, etc.
Standard flange installation form, can be customized hollow shaft installation;
The medium that can pass through are: compressed air, hydrogen, nitrogen, chemical mixture gas, steam, cooling water, hot water, hot oil, petroleum, sulfuric acid, beverage, etc.

Order model description

YD02004（2 in 2 out，4mm trachea，Pure pneumatic rotary joint）Size chart

List of Standard Models

Model	Number of the trachea	Interface size	Adaptive trachea
YD02004	2 in 2 out	M5	4~6mm

YD02004（2 in 2 out，4mm trachea）+6~36 road signal/2A(Adapts to battery valves and induction switches)

List of Standard Models

Model	Number of the trachea	Interface size	Adaptive trachea	Signal approach	Length（mm）
YD02004-06S	2 in 2 out	M5	4~6mm	6	14
YD02004-12S	2 in 2 out	M5	4~6mm	12	21
YD02004-24s	2 in 2 out	M5	4~6mm	24	35
YD02004-36s	2 in 2 out	M5	4~6mm	36	52

Technical parameters

Number of the trachea	2 in 2 out	Maximum pressure	Positive pressure：1Mpa，vacuo：-100kpa
Number of the trachea	4mm trachea M5 tooth	Torque	<0.2N.m
	Mechanical Technique Indicators		Electrical Technique Indicators
Parameter	Numerical	Parameter	Numerical
Working life	20 million turn		Power	Signal
Highest speed	Continuous rotation 250/ min, intermittent rotation 1000/min	Nomina Voltage	0-240VAC/VDC	0-240VAC/VDC
Working  temperature	-30℃~80℃	Insulation resistance	<500MΩ/300VDC	<500MΩ/300VDC
Working humidity	0-85%RH	Wire specifications	AWG26#Silver-plated Teflon	AWG26#Silver-plated Teflon
Contact materials	Precious metal contact	Wire length	Standard length 250mm (can be adjusted according to requirements)
Case material	Aluminum alloy	Dielectric strength	500VAC@50Hz，6s
Protection grade	IP51	Dynamic resistance change value	<0.01Ω

Table of color code of each ring wire of the electric slip ring

Circuit	1	2	3	4	5	6	7	8	9	10	11	12
Color code	Black	Red	Yellow	Green	Blue	White	Black	Red	Yellow	Green	Blue	White
Circuit	13	14	15	16	17	18	19	20	21	22	23	24
Color code	Black	Red	Yellow	Green	Blue	White	Black	Red	Yellow	Green	Blue	White

Features

Mixed power power line, signal line, Ethernet, USB, industrial bus, control line, solenoid valve, induction line, etc.
Standard flange installation form, can be customized hollow shaft installation;
The medium that can pass through are: compressed air, hydrogen, nitrogen, chemical mixture gas, steam, cooling water, hot water, hot oil, petroleum, sulfuric acid, beverage, etc.

Order model description

YD02004（2 in 2 out，4mm trachea，Pure pneumatic rotary joint）Size chart

List of Standard Models

Model	Number of the trachea	Interface size	Adaptive trachea
YD02004	2 in 2 out	M5	4~6mm

YD02004（2 in 2 out，4mm trachea）+6~36 road signal/2A(Adapts to battery valves and induction switches)

List of Standard Models

Model	Number of the trachea	Interface size	Adaptive trachea	Signal approach	Length（mm）
YD02004-06S	2 in 2 out	M5	4~6mm	6	14
YD02004-12S	2 in 2 out	M5	4~6mm	12	21
YD02004-24s	2 in 2 out	M5	4~6mm	24	35
YD02004-36s	2 in 2 out	M5	4~6mm	36	52

Technical parameters

Number of the trachea	2 in 2 out	Maximum pressure	Positive pressure：1Mpa，vacuo：-100kpa
Number of the trachea	4mm trachea M5 tooth	Torque	<0.2N.m
	Mechanical Technique Indicators		Electrical Technique Indicators
Parameter	Numerical	Parameter	Numerical
Working life	20 million turn		Power	Signal
Highest speed	Continuous rotation 250/ min, intermittent rotation 1000/min	Nomina Voltage	0-240VAC/VDC	0-240VAC/VDC
Working  temperature	-30℃~80℃	Insulation resistance	<500MΩ/300VDC	<500MΩ/300VDC
Working humidity	0-85%RH	Wire specifications	AWG26#Silver-plated Teflon	AWG26#Silver-plated Teflon
Contact materials	Precious metal contact	Wire length	Standard length 250mm (can be adjusted according to requirements)
Case material	Aluminum alloy	Dielectric strength	500VAC@50Hz，6s
Protection grade	IP51	Dynamic resistance change value	<0.01Ω

Table of color code of each ring wire of the electric slip ring

Circuit	1	2	3	4	5	6	7	8	9	10	11	12
Color code	Black	Red	Yellow	Green	Blue	White	Black	Red	Yellow	Green	Blue	White
Circuit	13	14	15	16	17	18	19	20	21	22	23	24
Color code	Black	Red	Yellow	Green	Blue	White	Black	Red	Yellow	Green	Blue	White
