Features

Mixed power power line, signal line, Ethernet, USB, industrial bus, control line, solenoid valve, induction line, etc.
Standard flange installation form, can be customized hollow shaft installation;
The medium that can pass through are: compressed air, hydrogen, nitrogen, chemical mixture gas, steam, cooling water, hot water, hot oil, petroleum, sulfuric acid, beverage, etc.

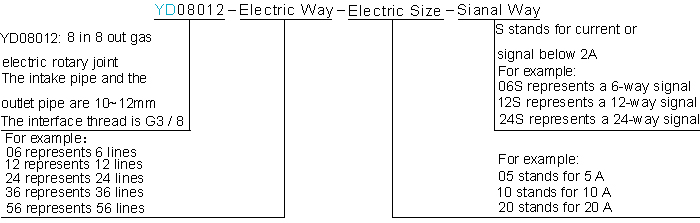

Order model description

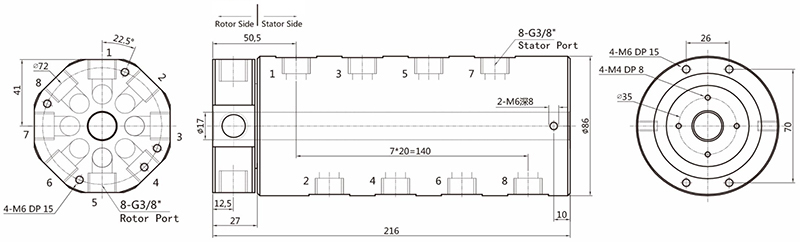

YD08012（8 in 8 out，10~12mm trachea，Pure pneumatic rotary joint）Size chart

List of Standard Models

Model	Number of the trachea	Interface size	Adaptive trachea
YD08012	8 in 8 out	G3/8"	10~12mm

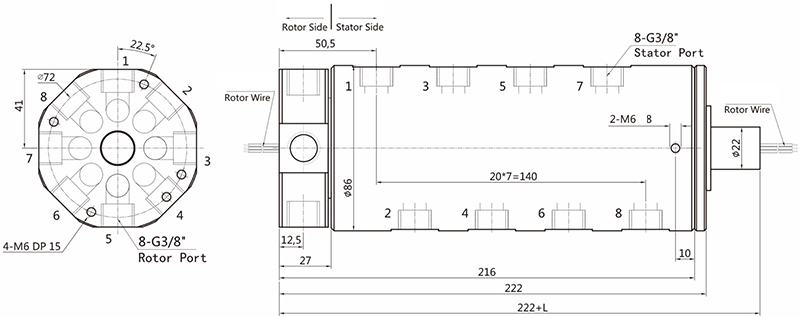

YD08012（8 in 8 out，10~12mm trachea）+6~36 road signal/2A(Adapts to battery valves and induction switches)

List of Standard Models

Model	Number of the trachea	Interface size	Adaptive trachea	Signal approach	Length（mm）
YD08012-06	8 in 8 out	G3/8"	10~12mm	6	14
YD08012-12	8 in 8 out	G3/8"	10~12mm	12	21
YD08012-24s	8 in 8 out	G3/8"	10~12mm	24	35
YD08012-36s	8 in 8 out	G3/8"	10~12mm	36	52.3
YD08012-56S	8 in 8 out	G3/8"	10~12mm	56	82

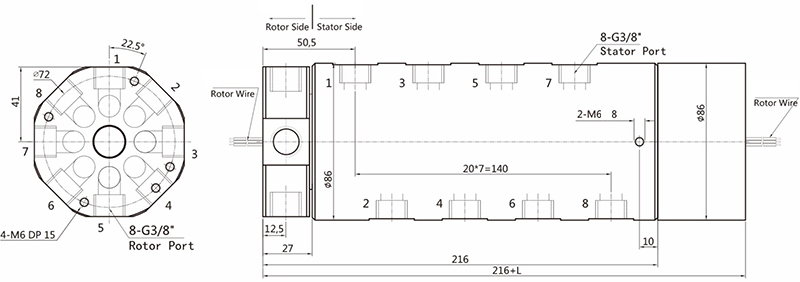

YD08012（8 in 8 out，10~12mm trachea）+Signal（5A）/10A

List of Standard Models

Model	Number of the trachea	Interface size	Adaptive trachea	Electricity（10A） road number	Signal（5A）	Length（mm）
YD08012-0605	8 in 8 out	G3/8"	10~12mm	0	6	48
YD08012-0610	8 in 8 out	G3/8"	10~12mm	6	0	48
YD08012-1205	8 in 8 out	G3/8"	10~12mm	0	12	72
YD08012-0610-0605	8 in 8 out	G3/8"	10~12mm	6	6	72
YD08012-1210	8 in 8 out	G3/8"	10~12mm	12	0	72
YD08012-0610-1205	8 in 8 out	G3/8"	10~12mm	6	12	96
YD08012-1210-0605	8 in 8 out	G3/8"	10~12mm	12	6	96
YD08012-1805	8 in 8 out	G3/8"	10~12mm	0	18	96
YD08012-1810	8 in 8 out	G3/8"	10~12mm	18	0	96
YD08012-0610-1805	8 in 8 out	G3/8"	10~12mm	6	18	120
YD08012-2405	8 in 8 out	G3/8"	10~12mm	0	24	120
YD08012-2410	8 in 8 out	G3/8"	10~12mm	24	0	120
YD08012-3605	8 in 8 out	G3/8"	10~12mm	0	36	168
YD08012-1210-2405	8 in 8 out	G3/8"	10~12mm	12	24	168
YD08012-3610	8 in 8 out	G3/8"	10~12mm	36	0	168
YD08012-4805	8 in 8 out	G3/8"	10~12mm	0	48	216
YD08012-1210-4805	8 in 8 out	G3/8"	10~12mm	12	36	216
YD08012-4810	8 in 8 out	G3/8"	10~12mm	48	0	216
YD08012-6005	8 in 8 out	G3/8"	10~12mm	0	60	264
YD08012-1210-4805	8 in 8 out	G3/8"	10~12mm	12	48	264
YD08012-7205	8 in 8 out	G3/8"	10~12mm	0	72	312
YD08012-2410-4805	8 in 8 out	G3/8"	10~12mm	24	48	312
YD08012-8405	8 in 8 out	G3/8"	10~12mm	0	84	360
YD08012-2410-6005	8 in 8 out	G3/8"	10~12mm	20	60	360
YD08012-9605	8 in 8 out	G3/8"	10~12mm	0	90	408
YD08012-10805	8 in 8 out	G3/8"	10~12mm	0	108	456
YD08012-12005	8 in 8 out	G3/8"	10~12mm	0	120	504

Technical parameters

Number of the trachea	8 in 8 out	Maximum pressure	Positive pressure：1Mpa，vacuo：-100kpa
Number of the trachea	10~12mm trachea G3/8 tooth	Torque	<0.8N.m
	Mechanical Technique Indicators		Electrical Technique Indicators
Parameter	Numerical	Parameter	Numerical
Working life	20 million turn		Power	Signal
Highest speed	Continuous rotation 250/ min, intermittent rotation 1000/min	Nomina Voltage	0-440VAC/VDC	0-440VAC/VDC
Working  temperature	-30℃~80℃	Insulation resistance	<500MΩ/300VDC	<500MΩ/300VDC
Working humidity	0-85%RH	Wire specifications	AWG26#Silver-plated Teflon	AWG26#Silver-plated Teflon
Contact materials	Precious metal contact	Wire length	Standard length 250mm (can be adjusted according to requirements)
Case material	Aluminum alloy	Dielectric strength	500VAC@50Hz，6s
Protection grade	IP51	Dynamic resistance change value	<0.01Ω

Features

Mixed power power line, signal line, Ethernet, USB, industrial bus, control line, solenoid valve, induction line, etc.
Standard flange installation form, can be customized hollow shaft installation;
The medium that can pass through are: compressed air, hydrogen, nitrogen, chemical mixture gas, steam, cooling water, hot water, hot oil, petroleum, sulfuric acid, beverage, etc.

Order model description

YD08012（8 in 8 out，10~12mm trachea，Pure pneumatic rotary joint）Size chart

List of Standard Models

Model	Number of the trachea	Interface size	Adaptive trachea
YD08012	8 in 8 out	G3/8"	10~12mm

YD08012（8 in 8 out，10~12mm trachea）+6~36 road signal/2A(Adapts to battery valves and induction switches)

List of Standard Models

Model	Number of the trachea	Interface size	Adaptive trachea	Signal approach	Length（mm）
YD08012-06	8 in 8 out	G3/8"	10~12mm	6	14
YD08012-12	8 in 8 out	G3/8"	10~12mm	12	21
YD08012-24s	8 in 8 out	G3/8"	10~12mm	24	35
YD08012-36s	8 in 8 out	G3/8"	10~12mm	36	52.3
YD08012-56S	8 in 8 out	G3/8"	10~12mm	56	82

YD08012（8 in 8 out，10~12mm trachea）+Signal（5A）/10A

List of Standard Models

Model	Number of the trachea	Interface size	Adaptive trachea	Electricity（10A） road number	Signal（5A）	Length（mm）
YD08012-0605	8 in 8 out	G3/8"	10~12mm	0	6	48
YD08012-0610	8 in 8 out	G3/8"	10~12mm	6	0	48
YD08012-1205	8 in 8 out	G3/8"	10~12mm	0	12	72
YD08012-0610-0605	8 in 8 out	G3/8"	10~12mm	6	6	72
YD08012-1210	8 in 8 out	G3/8"	10~12mm	12	0	72
YD08012-0610-1205	8 in 8 out	G3/8"	10~12mm	6	12	96
YD08012-1210-0605	8 in 8 out	G3/8"	10~12mm	12	6	96
YD08012-1805	8 in 8 out	G3/8"	10~12mm	0	18	96
YD08012-1810	8 in 8 out	G3/8"	10~12mm	18	0	96
YD08012-0610-1805	8 in 8 out	G3/8"	10~12mm	6	18	120
YD08012-2405	8 in 8 out	G3/8"	10~12mm	0	24	120
YD08012-2410	8 in 8 out	G3/8"	10~12mm	24	0	120
YD08012-3605	8 in 8 out	G3/8"	10~12mm	0	36	168
YD08012-1210-2405	8 in 8 out	G3/8"	10~12mm	12	24	168
YD08012-3610	8 in 8 out	G3/8"	10~12mm	36	0	168
YD08012-4805	8 in 8 out	G3/8"	10~12mm	0	48	216
YD08012-1210-4805	8 in 8 out	G3/8"	10~12mm	12	36	216
YD08012-4810	8 in 8 out	G3/8"	10~12mm	48	0	216
YD08012-6005	8 in 8 out	G3/8"	10~12mm	0	60	264
YD08012-1210-4805	8 in 8 out	G3/8"	10~12mm	12	48	264
YD08012-7205	8 in 8 out	G3/8"	10~12mm	0	72	312
YD08012-2410-4805	8 in 8 out	G3/8"	10~12mm	24	48	312
YD08012-8405	8 in 8 out	G3/8"	10~12mm	0	84	360
YD08012-2410-6005	8 in 8 out	G3/8"	10~12mm	20	60	360
YD08012-9605	8 in 8 out	G3/8"	10~12mm	0	90	408
YD08012-10805	8 in 8 out	G3/8"	10~12mm	0	108	456
YD08012-12005	8 in 8 out	G3/8"	10~12mm	0	120	504

Technical parameters

Number of the trachea	8 in 8 out	Maximum pressure	Positive pressure：1Mpa，vacuo：-100kpa
Number of the trachea	10~12mm trachea G3/8 tooth	Torque	<0.8N.m
	Mechanical Technique Indicators		Electrical Technique Indicators
Parameter	Numerical	Parameter	Numerical
Working life	20 million turn		Power	Signal
Highest speed	Continuous rotation 250/ min, intermittent rotation 1000/min	Nomina Voltage	0-440VAC/VDC	0-440VAC/VDC
Working  temperature	-30℃~80℃	Insulation resistance	<500MΩ/300VDC	<500MΩ/300VDC
Working humidity	0-85%RH	Wire specifications	AWG26#Silver-plated Teflon	AWG26#Silver-plated Teflon
Contact materials	Precious metal contact	Wire length	Standard length 250mm (can be adjusted according to requirements)
Case material	Aluminum alloy	Dielectric strength	500VAC@50Hz，6s
Protection grade	IP51	Dynamic resistance change value	<0.01Ω

Features

Mixed power power line, signal line, Ethernet, USB, industrial bus, control line, solenoid valve, induction line, etc.
Standard flange installation form, can be customized hollow shaft installation;
The medium that can pass through are: compressed air, hydrogen, nitrogen, chemical mixture gas, steam, cooling water, hot water, hot oil, petroleum, sulfuric acid, beverage, etc.

Order model description

YD08012（8 in 8 out，10~12mm trachea，Pure pneumatic rotary joint）Size chart

List of Standard Models

Model	Number of the trachea	Interface size	Adaptive trachea
YD08012	8 in 8 out	G3/8"	10~12mm

YD08012（8 in 8 out，10~12mm trachea）+6~36 road signal/2A(Adapts to battery valves and induction switches)

List of Standard Models

Model	Number of the trachea	Interface size	Adaptive trachea	Signal approach	Length（mm）
YD08012-06	8 in 8 out	G3/8"	10~12mm	6	14
YD08012-12	8 in 8 out	G3/8"	10~12mm	12	21
YD08012-24s	8 in 8 out	G3/8"	10~12mm	24	35
YD08012-36s	8 in 8 out	G3/8"	10~12mm	36	52.3
YD08012-56S	8 in 8 out	G3/8"	10~12mm	56	82

YD08012（8 in 8 out，10~12mm trachea）+Signal（5A）/10A

List of Standard Models

Model	Number of the trachea	Interface size	Adaptive trachea	Electricity（10A） road number	Signal（5A）	Length（mm）
YD08012-0605	8 in 8 out	G3/8"	10~12mm	0	6	48
YD08012-0610	8 in 8 out	G3/8"	10~12mm	6	0	48
YD08012-1205	8 in 8 out	G3/8"	10~12mm	0	12	72
YD08012-0610-0605	8 in 8 out	G3/8"	10~12mm	6	6	72
YD08012-1210	8 in 8 out	G3/8"	10~12mm	12	0	72
YD08012-0610-1205	8 in 8 out	G3/8"	10~12mm	6	12	96
YD08012-1210-0605	8 in 8 out	G3/8"	10~12mm	12	6	96
YD08012-1805	8 in 8 out	G3/8"	10~12mm	0	18	96
YD08012-1810	8 in 8 out	G3/8"	10~12mm	18	0	96
YD08012-0610-1805	8 in 8 out	G3/8"	10~12mm	6	18	120
YD08012-2405	8 in 8 out	G3/8"	10~12mm	0	24	120
YD08012-2410	8 in 8 out	G3/8"	10~12mm	24	0	120
YD08012-3605	8 in 8 out	G3/8"	10~12mm	0	36	168
YD08012-1210-2405	8 in 8 out	G3/8"	10~12mm	12	24	168
YD08012-3610	8 in 8 out	G3/8"	10~12mm	36	0	168
YD08012-4805	8 in 8 out	G3/8"	10~12mm	0	48	216
YD08012-1210-4805	8 in 8 out	G3/8"	10~12mm	12	36	216
YD08012-4810	8 in 8 out	G3/8"	10~12mm	48	0	216
YD08012-6005	8 in 8 out	G3/8"	10~12mm	0	60	264
YD08012-1210-4805	8 in 8 out	G3/8"	10~12mm	12	48	264
YD08012-7205	8 in 8 out	G3/8"	10~12mm	0	72	312
YD08012-2410-4805	8 in 8 out	G3/8"	10~12mm	24	48	312
YD08012-8405	8 in 8 out	G3/8"	10~12mm	0	84	360
YD08012-2410-6005	8 in 8 out	G3/8"	10~12mm	20	60	360
YD08012-9605	8 in 8 out	G3/8"	10~12mm	0	90	408
YD08012-10805	8 in 8 out	G3/8"	10~12mm	0	108	456
YD08012-12005	8 in 8 out	G3/8"	10~12mm	0	120	504

Technical parameters

Number of the trachea	8 in 8 out	Maximum pressure	Positive pressure：1Mpa，vacuo：-100kpa
Number of the trachea	10~12mm trachea G3/8 tooth	Torque	<0.8N.m
	Mechanical Technique Indicators		Electrical Technique Indicators
Parameter	Numerical	Parameter	Numerical
Working life	20 million turn		Power	Signal
Highest speed	Continuous rotation 250/ min, intermittent rotation 1000/min	Nomina Voltage	0-440VAC/VDC	0-440VAC/VDC
Working  temperature	-30℃~80℃	Insulation resistance	<500MΩ/300VDC	<500MΩ/300VDC
Working humidity	0-85%RH	Wire specifications	AWG26#Silver-plated Teflon	AWG26#Silver-plated Teflon
Contact materials	Precious metal contact	Wire length	Standard length 250mm (can be adjusted according to requirements)
Case material	Aluminum alloy	Dielectric strength	500VAC@50Hz，6s
Protection grade	IP51	Dynamic resistance change value	<0.01Ω

Features

Mixed power power line, signal line, Ethernet, USB, industrial bus, control line, solenoid valve, induction line, etc.
Standard flange installation form, can be customized hollow shaft installation;
The medium that can pass through are: compressed air, hydrogen, nitrogen, chemical mixture gas, steam, cooling water, hot water, hot oil, petroleum, sulfuric acid, beverage, etc.

Order model description

YD08012（8 in 8 out，10~12mm trachea，Pure pneumatic rotary joint）Size chart

List of Standard Models

Model	Number of the trachea	Interface size	Adaptive trachea
YD08012	8 in 8 out	G3/8"	10~12mm

YD08012（8 in 8 out，10~12mm trachea）+6~36 road signal/2A(Adapts to battery valves and induction switches)

List of Standard Models

Model	Number of the trachea	Interface size	Adaptive trachea	Signal approach	Length（mm）
YD08012-06	8 in 8 out	G3/8"	10~12mm	6	14
YD08012-12	8 in 8 out	G3/8"	10~12mm	12	21
YD08012-24s	8 in 8 out	G3/8"	10~12mm	24	35
YD08012-36s	8 in 8 out	G3/8"	10~12mm	36	52.3
YD08012-56S	8 in 8 out	G3/8"	10~12mm	56	82

YD08012（8 in 8 out，10~12mm trachea）+Signal（5A）/10A

List of Standard Models

Model	Number of the trachea	Interface size	Adaptive trachea	Electricity（10A） road number	Signal（5A）	Length（mm）
YD08012-0605	8 in 8 out	G3/8"	10~12mm	0	6	48
YD08012-0610	8 in 8 out	G3/8"	10~12mm	6	0	48
YD08012-1205	8 in 8 out	G3/8"	10~12mm	0	12	72
YD08012-0610-0605	8 in 8 out	G3/8"	10~12mm	6	6	72
YD08012-1210	8 in 8 out	G3/8"	10~12mm	12	0	72
YD08012-0610-1205	8 in 8 out	G3/8"	10~12mm	6	12	96
YD08012-1210-0605	8 in 8 out	G3/8"	10~12mm	12	6	96
YD08012-1805	8 in 8 out	G3/8"	10~12mm	0	18	96
YD08012-1810	8 in 8 out	G3/8"	10~12mm	18	0	96
YD08012-0610-1805	8 in 8 out	G3/8"	10~12mm	6	18	120
YD08012-2405	8 in 8 out	G3/8"	10~12mm	0	24	120
YD08012-2410	8 in 8 out	G3/8"	10~12mm	24	0	120
YD08012-3605	8 in 8 out	G3/8"	10~12mm	0	36	168
YD08012-1210-2405	8 in 8 out	G3/8"	10~12mm	12	24	168
YD08012-3610	8 in 8 out	G3/8"	10~12mm	36	0	168
YD08012-4805	8 in 8 out	G3/8"	10~12mm	0	48	216
YD08012-1210-4805	8 in 8 out	G3/8"	10~12mm	12	36	216
YD08012-4810	8 in 8 out	G3/8"	10~12mm	48	0	216
YD08012-6005	8 in 8 out	G3/8"	10~12mm	0	60	264
YD08012-1210-4805	8 in 8 out	G3/8"	10~12mm	12	48	264
YD08012-7205	8 in 8 out	G3/8"	10~12mm	0	72	312
YD08012-2410-4805	8 in 8 out	G3/8"	10~12mm	24	48	312
YD08012-8405	8 in 8 out	G3/8"	10~12mm	0	84	360
YD08012-2410-6005	8 in 8 out	G3/8"	10~12mm	20	60	360
YD08012-9605	8 in 8 out	G3/8"	10~12mm	0	90	408
YD08012-10805	8 in 8 out	G3/8"	10~12mm	0	108	456
YD08012-12005	8 in 8 out	G3/8"	10~12mm	0	120	504

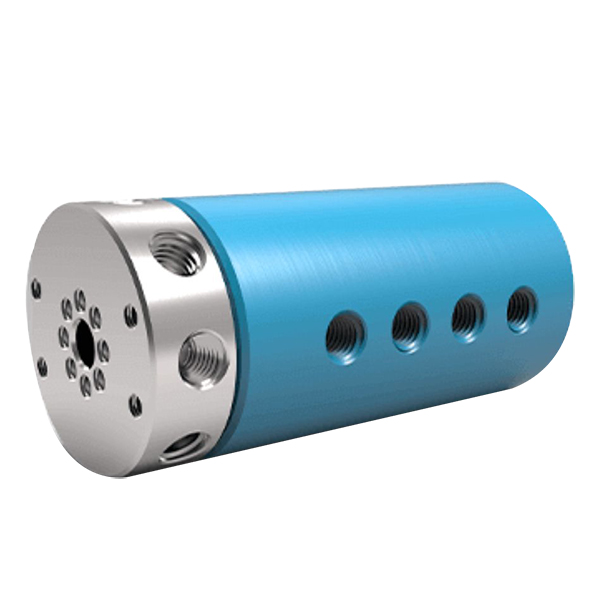

Technical parameters

Number of the trachea	8 in 8 out	Maximum pressure	Positive pressure：1Mpa，vacuo：-100kpa
Number of the trachea	10~12mm trachea G3/8 tooth	Torque	<0.8N.m
	Mechanical Technique Indicators		Electrical Technique Indicators
Parameter	Numerical	Parameter	Numerical
Working life	20 million turn		Power	Signal
Highest speed	Continuous rotation 250/ min, intermittent rotation 1000/min	Nomina Voltage	0-440VAC/VDC	0-440VAC/VDC
Working  temperature	-30℃~80℃	Insulation resistance	<500MΩ/300VDC	<500MΩ/300VDC
Working humidity	0-85%RH	Wire specifications	AWG26#Silver-plated Teflon	AWG26#Silver-plated Teflon
Contact materials	Precious metal contact	Wire length	Standard length 250mm (can be adjusted according to requirements)
Case material	Aluminum alloy	Dielectric strength	500VAC@50Hz，6s
Protection grade	IP51	Dynamic resistance change value	<0.01Ω

If you have any enquiry about quotation or cooperation, please feel free to email us at ydslipring@asia-d.com or use the following enquiry form. Our sales representative will contact you within 24 hours. Thank you for your interest in our products.

*Product name
*Name	Please enter your Name
*E-mail	Please enter the E-mail Please enter a correct email
Tel
Title
*Content	Please input the Content
	Submit    Reset
