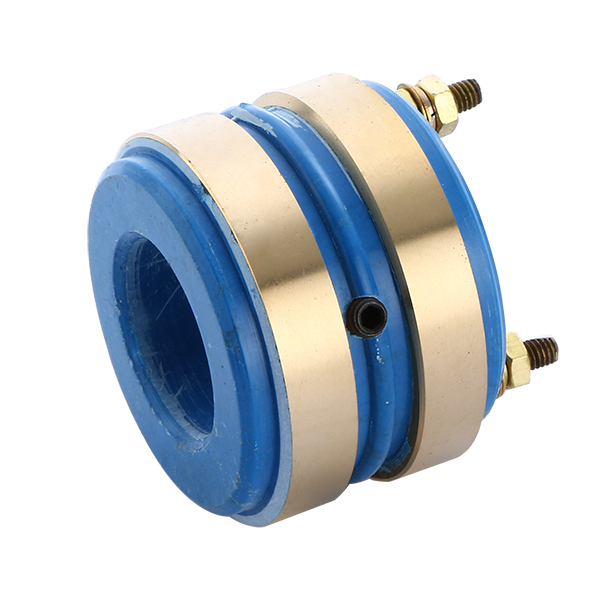

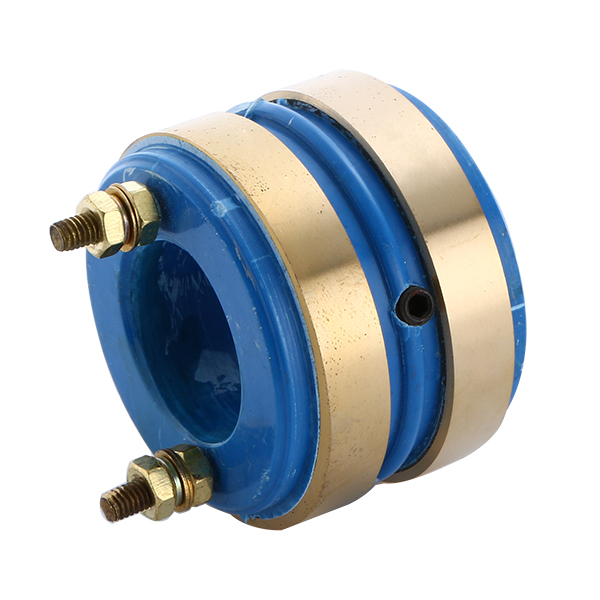

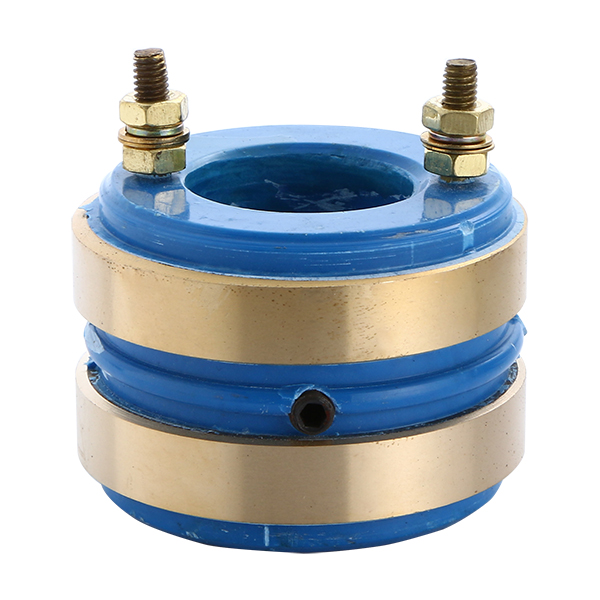

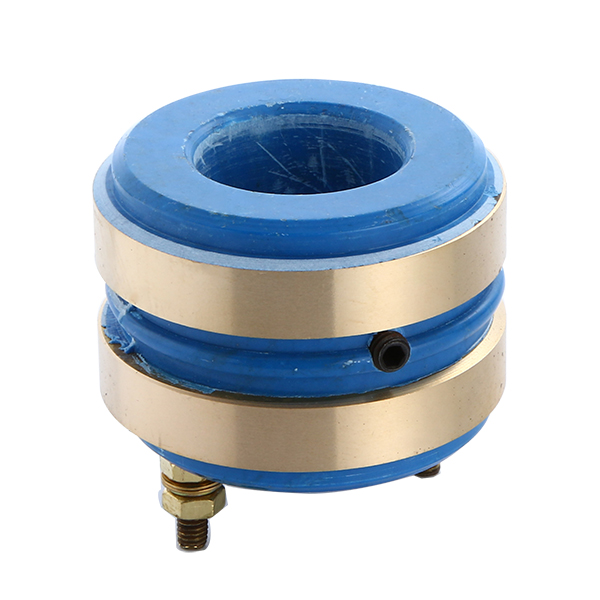

Description:
SRS carbon brush slip ring is a 360-degree contact rotation conduction between carbon brush and slip ring. It can be used in any electromechanical system that requires continuous rotation and the transmission of power and signals from fixed position to rotating position. The slip ring can improve the system performance and simplify the system structure.
Characteristic:
Good conductivity, long service life;
Brush running, good sliding contact, no overheating, no noise, low loss;
In the process of operation, the surface of collector ring is uniform, moderate and stable；
The pressure of each carbon brush is uniform and stable, and the structure ensures the stability of the carbon brush and smooth contact；
When the slip ring works, it can transmit signal and current stably。

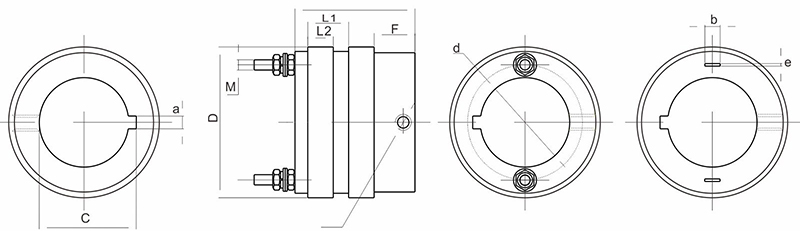

Product Outline Dimension Drawing
Order Model Description
2-Circuits Series Collector Rings
|
Model |
d |
D |
H |
L2 |
L1 |
M |
f |
b |
e |
a |
C |
M1 |
|
SRS153030-2N |
15 |
30 |
30 |
10 |
12 |
Ø 2 |
3 |
/ |
/ |
/ |
/ |
/ |
|
SRS154565-2T |
15 |
45 |
65 |
16 |
20 |
M4 |
20 |
/ |
/ |
/ |
/ |
/ |
|
SRS163029-2N |
16 |
30 |
29 |
10.5 |
14 |
Ø 2 |
2 |
/ |
/ |
/ |
/ |
/ |
|
SRS17K4528-2T |
17 |
45 |
28 |
8 |
13 |
M4 |
3 |
/ |
/ |
5 |
20 |
/ |
|
SRS17H5034-2T |
17 |
50 |
34 |
7 |
12 |
M4 |
10 |
/ |
/ |
/ |
/ |
2-M5 |
|
SRS17H6045-2T |
17 |
60 |
45 |
9.5 |
16 |
M4 |
16 |
/ |
/ |
/ |
/ |
2-M6 |
|
SRS18KH5034-2T |
18 |
50 |
34 |
9.5 |
16 |
M4 |
16 |
/ |
/ |
6 |
21 |
2-M6 |
|
SRS18KH6045-2T |
18 |
60 |
45 |
9.5 |
16 |
M4 |
16 |
/ |
/ |
6 |
21 |
2-M6 |
|
SRS20H5034-2T |
20 |
50 |
34 |
7 |
12 |
M4 |
10 |
/ |
/ |
/ |
/ |
2-M5 |
|
SRS20H5834-2T |
20 |
58 |
34 |
9.5 |
16 |
M4 |
6 |
/ |
/ |
6 |
23 |
/ |
|
SRS20K6034-2T |
20 |
60 |
34 |
9.5 |
16 |
M4 |
6 |
/ |
/ |
6 |
23 |
/ |
|
SRS20KH6045-2T |
20 |
60 |
45 |
9.5 |
16 |
M4 |
16 |
/ |
/ |
6 |
23 |
2-M8 |
|
SRS254565-2T |
25 |
45 |
65 |
16 |
20 |
M4 |
20 |
/ |
/ |
/ |
/ |
/ |
|
SRS25K6034-2T |
25 |
60 |
34 |
9 |
16 |
M4 |
5 |
/ |
/ |
8 |
29 |
/ |
|
SRS25K7040-2S |
25 |
70 |
40 |
9 |
16 |
/ |
8 |
8 |
2 |
8 |
29 |
/ |
|
SRS26K8050-2T |
26 |
80 |
50 |
12 |
22 |
M5 |
6 |
/ |
/ |
8 |
29.8 |
/ |
|
SRS28K6045-2T |
28 |
60 |
45 |
9 |
16 |
M4 |
16 |
/ |
/ |
8 |
32 |
/ |
|
SRS306034-2T |
30 |
60 |
34 |
9.5 |
16 |
M4 |
6 |
/ |
/ |
/ |
/ |
/ |
|
SRS30K7040-2S |
30 |
70 |
40 |
9 |
16 |
/ |
7 |
8 |
2 |
8 |
34 |
/ |
|
SRS35K7950-2S |
35 |
79 |
50 |
12 |
23 |
/ |
8 |
10 |
2 |
10 |
40 |
/ |
|
SRS40K7040-2S |
40 |
70 |
40 |
9 |
16 |
/ |
8 |
8 |
2 |
8 |
44 |
/ |
|
SRS408050-2NS |
40 |
80 |
50 |
10 |
32 |
5 |
7 |
10 |
2 |
/ |
/ |
/ |
|
SRS409038-2T |
40 |
90 |
38 |
9 |
14 |
M4 |
8 |
/ |
/ |
/ |
/ |
/ |
|
SRS40H7841-2N |
40 |
78 |
41 |
9 |
13 |
4 |
4 |
/ |
/ |
/ |
/ |
2-M6 |
|
SRS428048-2T |
42 |
80 |
48 |
11 |
21 |
M4 |
11 |
/ |
/ |
/ |
/ |
/ |
|
SRS4410844-2T |
44 |
108 |
44 |
9 |
12 |
M4 |
3 |
/ |
/ |
/ |
/ |
/ |
|
SRS509038-2T |
50 |
90 |
38 |
9 |
14 |
M4 |
8 |
/ |
/ |
/ |
/ |
/ |
|
SRS5010050-2T |
50 |
100 |
50 |
13 |
24 |
M6 |
5 |
/ |
/ |
/ |
/ |
/ |
|
SRS5010850-2T |
50 |
108 |
50 |
10 |
22 |
M6 |
8 |
/ |
/ |
/ |
/ |
/ |
Note: Ø stands for copper cylinders without threads; M stands for screws with threads.
Technical Parameter
Mechanical Technique Indicators
Electrical Technique Indicators
Parameter
Numerical Value
Parameter
Numerical Value
Working Life
10 million RPM reference value(Depending on work)
Power
Signal
Rated Speed
150 rpm
Rated Voltage
0~240VAC/VDC
0~240VAC/VDC
Working Temperature
-30℃~-80℃
Insulation Resistance
≥300MΩ/300VDC
≥300MΩ/300VDC
Working Humidity
0~85%RH
Wire Specification
Reference Selection Table
Reference Selection Table
Contact Material
Metal
Wire Length
Standard Length 300mm（It can be customized）
Shell Material
Engineering Plastic
Insulation Strength
300VAC@50Hz，60S
Moving Torque
0.05N.m+0.02N.m/6 way
Dynamic Resistance Variation
<0.01Ω
Protection Level
IP51

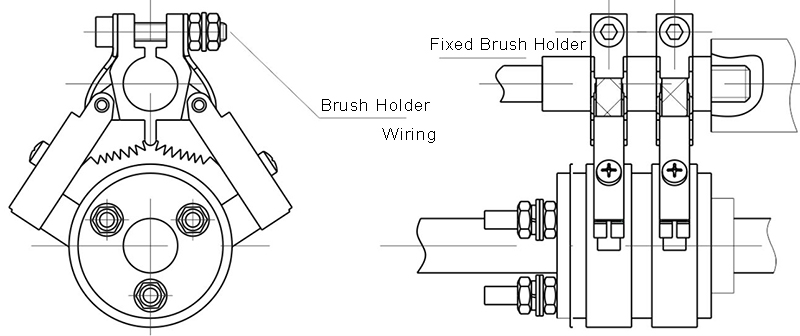

Installation Graphic
Description:
SRS carbon brush slip ring is a 360-degree contact rotation conduction between carbon brush and slip ring. It can be used in any electromechanical system that requires continuous rotation and the transmission of power and signals from fixed position to rotating position. The slip ring can improve the system performance and simplify the system structure.
Characteristic:
Good conductivity, long service life;
Brush running, good sliding contact, no overheating, no noise, low loss;
In the process of operation, the surface of collector ring is uniform, moderate and stable；
The pressure of each carbon brush is uniform and stable, and the structure ensures the stability of the carbon brush and smooth contact；
When the slip ring works, it can transmit signal and current stably。
