You are here : Home » Products » Carbon Brush Slip Ring
Products Details

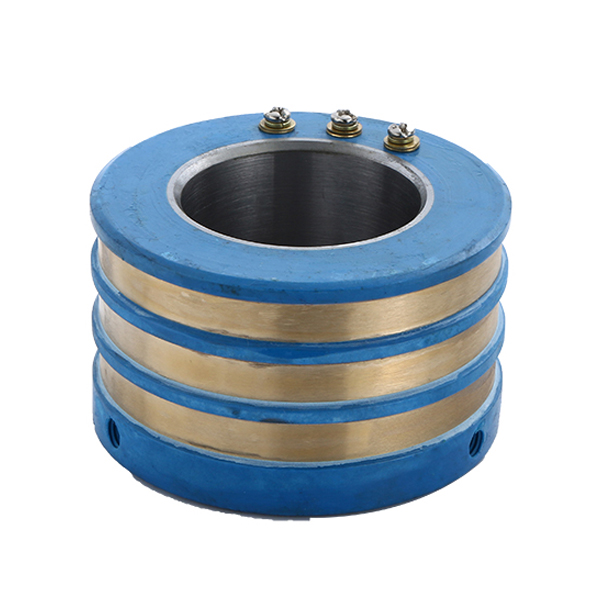

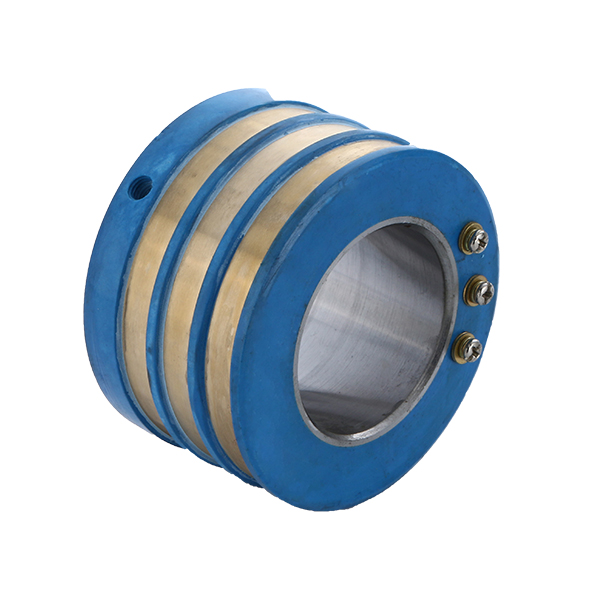

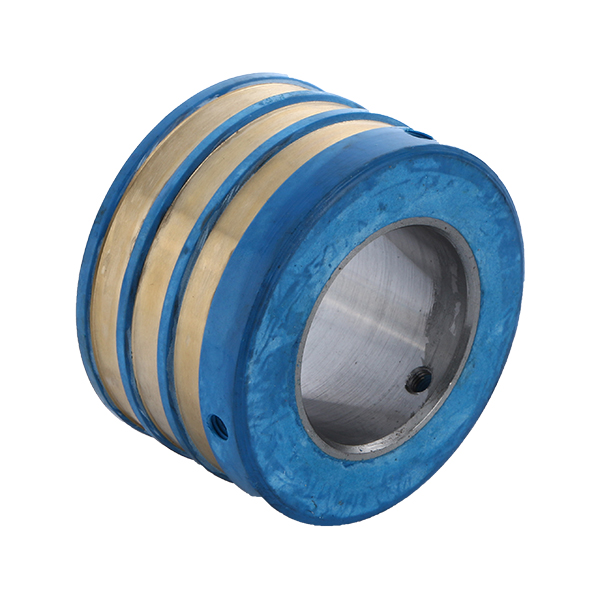

3 circuits slip ring
Carbon Brush Slip Ring
OnLine Service:
15205771557
- Product name:
- Product Catalog:
15205771557| Product Details | Online Inquiry | Online Inquiry | Online Inquiry | Online Inquiry |
|---|
Description:
SRS carbon brush slip ring is a 360-degree contact rotation conduction between carbon brush and slip ring. It can be used in any electromechanical system that requires continuous rotation and the transmission of power and signals from fixed position to rotating position. The slip ring can improve the system performance and simplify the system structure.
Characteristic:
Good conductivity, long service life;
Brush running, good sliding contact, no overheating, no noise, low loss;
In the process of operation, the surface of collector ring is uniform, moderate and stable；
The pressure of each carbon brush is uniform and stable, and the structure ensures the
stability of the carbon brush and smooth contact；
When the slip ring works, it can transmit signal and current stably。

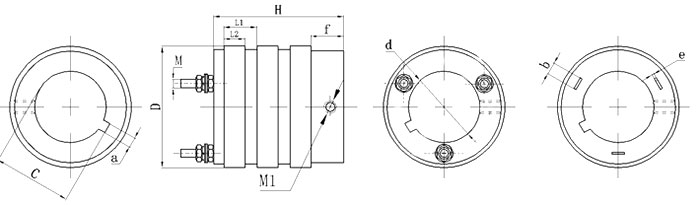

Product Outline Dimension Drawing
Order Model Description
3-Circuits Series Collector Rings
| Model | d | D | H | L2 | L1 | M | f | b | e | a | C | M1 |
| SRS83044-3N | 8 | 30 | 44 | 2 | 15 | 2 | 2 | / | / | / | / | / |
| SRS123645-3T | 12 | 36 | 45 | 10 | 15 | M4 | 2 | / | / | / | / | / |
| SRS183542-3N | 18 | 35 | 42 | 8 | 13 | 2 | 4 | / | / | / | / | / |
| SRS203840-3N | 20 | 38 | 40 | 10 | 14 | 2 | 2 | / | / | / | / | / |
| SRS20K3845-3T | 20 | 38 | 45 | 10 | 16 | M4 | 5 | / | / | 6 | 23 | / |
| SRS255454-3T | 25 | 54 | 54 | 10 | 16 | M4 | 5 | / | / | / | / | / |
| SRS25K7570-3S | 25 | 75 | 70 | 12 | 22 | / | 6 | 10 | 2 | 8 | 29 | / |
| SRS28K6874-3S | 28 | 68 | 74 | 17.5 | 23 | / | 6 | 10 | 2 | 5 | 31 | / |
| SRS32K7745-3T | 32 | 77 | 45 | 8 | 12 | M4 | 4 | / | / | / | / | / |
| SRS33.5K12947-3T | 33.5 | 129 | 47 | 8 | 12 | M4 | 3 | / | / | 8 | 37.5 | / |
| SRS35K5445-3W | 35 | 54 | 45 | 10 | 15 | Wires with a sectional area of 2 square millimeters | 4 | / | / | 6 | 38 | / |
| SRS356059-3T | 35 | 60 | 59 | 9 | 15 | M4 | 5 | / | / | / | / | / |
| SRS35F7049-3N | 35 | 70 | 49 | Iron core 9 | 12/8 | 3 | 12 | / | / | / | / | / |
| SRS35K8371-3T | 35 | 83 | 71 | 10 | 18 | M4 | 3 | / | / | 8 | 37.5 | / |
| SRS40K6270-3N | 40 | 62 | 70 | 14 | 24 | 2.5 | 4 | / | / | / | / | / |
| SRS40K8090-3S | 40 | 80 | 90 | 12 | 25 | / | 18 | 10 | 2 | 10 | 44 | / |
| SRS40K9038-3T | 40 | 90 | 38 | 8 | 11 | M4 | 4 | / | / | 7 | 44.5 | / |
| SRS417737-3T | 41 | 77 | 37 | 8 | 12 | M4 | 3 | / | / | / | / | / |
| SRS427060-3S | 42 | 70 | 60 | 11 | 20 | / | 5 | 5 | 2 | / | / | / |
| SRS45H6761-3S | 45 | 67 | 61 | 10 | 20 | / | / | 5 | 2 | / | / | 2-M6 |
| SRS4513945-3T | 45 | 129 | 45 | 8 | 12 | M4 | 4 | / | / | / | / | / |
| SRS45K7570-3S | 45 | 75 | 70 | 12 | 22 | / | 7 | 10 | 2 | 10 | 49 | / |
| SRS45K7869-3S | 45 | 78 | 69 | 12 | 21.5 | / | 7 | 10 | 2 | 10 | 49 | / |
| SRS5012954-3T | 50 | 129 | 54 | 8 | 12 | M4 | 4 | / | / | / | / | / |
| SRS507047-3S | 50 | 70 | 47 | 9 | 12.5 | / | 7 | 5 | 2 | / | / | / |
| SRS50K9077-3S | 50 | 90 | 77 | 15 | 27 | / | 5 | 14 | 2 | 10 | 55 | / |
| SRS50K90110-3T | 50 | 90 | 110 | 8 | 12 | M4 | 30 | / | / | 8 | 54 | / |
| SRS52K9276-3S | 52 | 92 | 76 | 14 | 27 | / | 3.5 | 14 | 2.5 | 10 | 4 | / |
| SRS5410840-3W | 54 | 108 | 40 | 7.5 | 11.5 | wires | 3 | / | / | / | / | / |
| SRS55K10090-3S | 55 | 100 | 90 | 13.5/9 | 26 | / | 10 | 14 | 2 | 10 | 4.5 | / |
| SRS2713054-3N | 57 | 130 | 115 | 12 | 30 | 6 | 21 | / | / | / | / | / |
| SRS6013054-3T | 60 | 130 | 54 | 8 | 12 | M4 | 4 | / | / | / | / | / |
| SRS60107100-3S | 60 | 107 | 100 | 14 | 34 | / | / | 10 | 2 | / | / | / |
| SRS6010866-3T | 60 | 108 | 66 | 8 | 14 | M4 | 4 | / | / | / | / | / |
| SRS60K10885-3S | 60 | 108 | 85 | 15 | 25 | / | 8 | 12 | 2 | 12 | 65 | / |
| SRS6011572-3T | 60 | 115 | 72 | 10 | 19 | M4 | 15 | / | / | / | / | / |
| SRS6012043-3T | 60 | 120 | 43 | 9 | 3 | M4 | 3 | / | / | / | / | / |
| SRS60138125-3S | 60 | 138 | 125 | 18 | 36 | / | 11 | 20 | 3 | / | / | / |
| SRS60138125-3S | 63 | 108 | 43 | 10 | 13 | M4 | 37 | / | / | / | / | / |
| SRS6310843-3T | 63 | 120 | 76 | 10 | 20 | / | 10 | 14 | 2.5 | 14 | 68.5 | / |
| SRS65K12076-3S | 65 | 108 | 100 | 13.6 | 30 | / | 10 | 14 | 2.5 | 14 | 3.5 | / |
| SRS65K110100-3S | 65 | 110 | 100 | 14 | 28 | / | 11 | 16 | 2.5 | 14 | 5 | / |
| SRS7012043-3T | 70 | 120 | 43 | 10 | 13 | M4 | 3 | / | / | / | / | / |
| SRS70K120100-3S | 70 | 120 | 100 | 19 | 31 | / | 11 | 20 | 2 | 10 | 74 | / |
| SRS70H10875-3N | 70 | 108 | 75 | 10 | 20 | 4 | 8 | / | / | / | / | 2-M8 |
| SRS75K125110-3S | 75 | 125 | 110 | 15 | 31 | / | 9 | 14 | 2 | 14 | 79 | / |
| SRS75140124-3S | 75 | 140 | 124 | 18 | 36 | / | 11 | 20 | 3 | / | / | / |
| SRS84K130100-3S | 84 | 130 | 100 | 20 | 32 | / | 9 | 15 | 2 | 12 | 88.5 | / |
| SRS85K125127-3S | 85 | 125 | 127 | 18 | 36 | / | 10.5 | 16 | 2 | 6 | 101 |
|
| SRS85K137125-3S | 85 | 137 | 125 | 18 | 36 | / | 16 | 16 | 2 | 18 | 91 | / |
| SRS90K160140-3S | 90 | 160 | 140 | 20 | 40 | / | 15 | 20 | 2 | 18 | 97 | / |
| SRS100K180140-3S | 100 | 180 | 140 | 22 | 42 | / | 20 | 20 | 2 | 14 | 105.5 | / |
| SRS23029572-3N | 230 | 295 | 72 | 10 | 16 | 5 | 22 | / | / | / | / | / |
Note: Ø stands for copper cylinders
without threads; M stands for screws with threads.
Technical Parameter
| Mechanical Technique Indicators | Electrical Technique Indicators | |||
| Parameter | Numerical Value |
Parameter |
Numerical Value |
|
|
Working Life |
10 million RPM reference value(Depending on work) |
|
Power |
Signal |
|
Rated Speed |
150 rpm |
Rated Voltage |
0~240VAC/VDC |
0~240VAC/VDC |
|
Working Temperature |
-30℃~-80℃ |
Insulation Resistance |
≥300MΩ/300VDC |
≥300MΩ/300VDC |
|
Working Humidity |
0~85%RH |
Wire Specification |
Reference Selection Table |
Reference Selection Table |
|
Contact Material |
Metal |
Wire Length |
Standard Length 300mm（It can be customized） |
|
|
Shell Material |
Engineering Plastic |
Insulation Strength |
300VAC@50Hz，60S |
|
|
Moving Torque |
0.05N.m+0.02N.m/6 way |
Dynamic Resistance Variation |
<0.01Ω |
|
|
Protection Level |
IP51 |
|
|
|

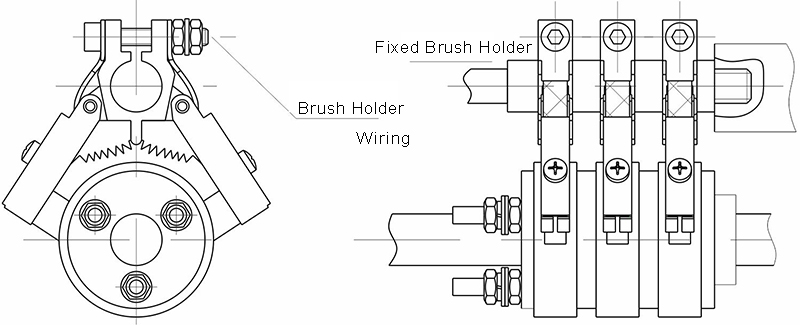

Installation Graphic
