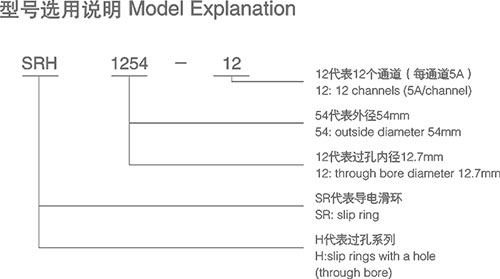

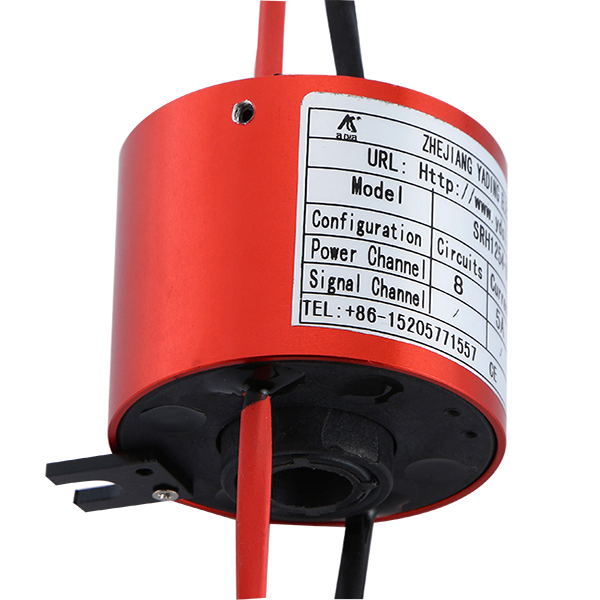

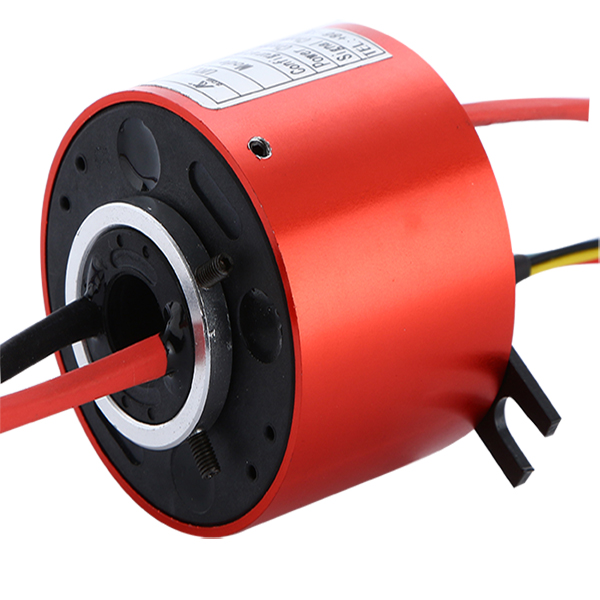

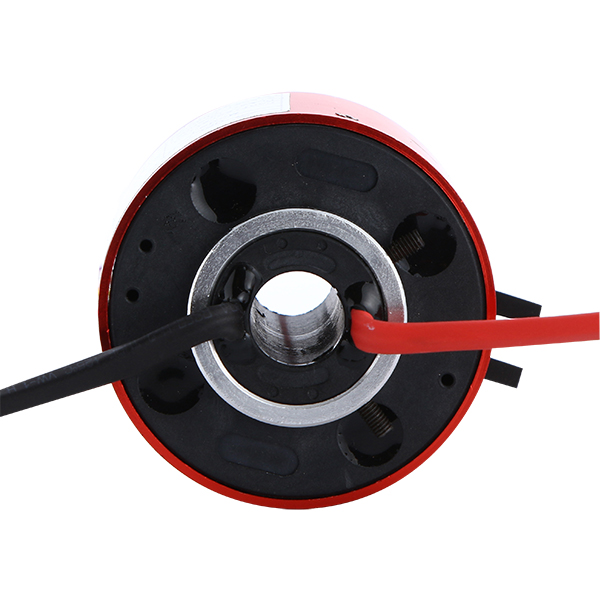

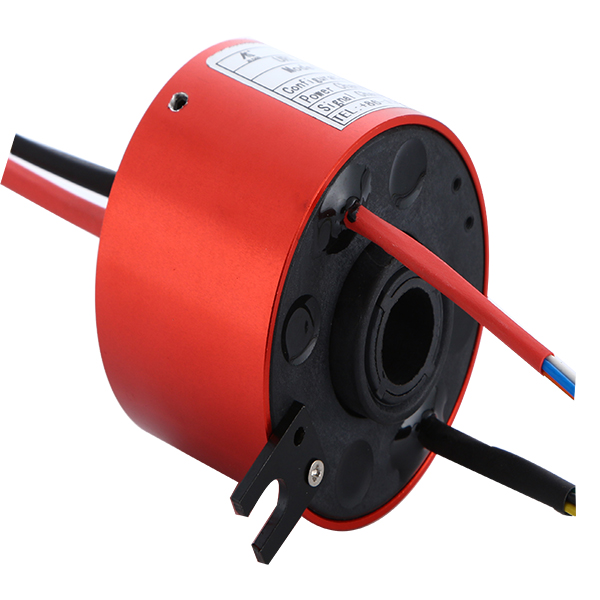

Series SRH1254

Electrical Technique Indicators

Parameters	Value
Parameters	Power	Signal
Nominal Voltage	380VAC	240VAC/VDC
Insulation Resistance	≥1000MΩ/500VDC	≥500MΩ/500VDC
Conductor Size	AWG16 Tin-plated Teflon or PVC insulation Wires	AWG16 Tin-plated Teflon insulation wires
Conductor Length	Standard 300mm
Insulation strength	500VAC@50Hz,60s
Electrical Noise	＜0.01Ω

Mechanical Technique Indicators

Indicators	Value
	Power	Signal
Working Speed	0-800rpm(or higher)
Working Temperature	-20℃-+80℃ or -40℃-+80℃
Working Humidity	60％RH or higher
Contact Material	Noble Metal
Casting Material	Industrial Metal
Operating Torque	0.1N/m for 6 rings, the torque increases with each 6 rings
Protection Class	IP51

Specification Table

Type	Length (L=mm)	Ring Number
SRH1254-6	33.4	6
SRH1254-12	47.2	12
SRH1254-18	61	18
SRH1254-24	74.8	24

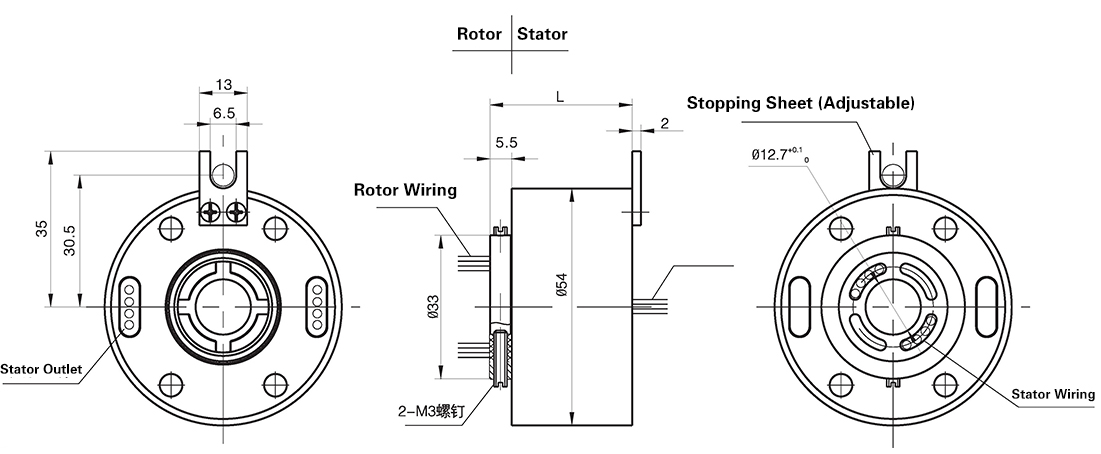

Shape dimension figure

Installation Instruction

Due to the difficulty of creating concentric installation of the rotors and stators of the slip rings, it’s advised to fix the slip rings to the rotation shaft with four fastening screws and to fix the stop plate into the stop rod. Forcible operations of the stop plate may reduce the anticipated service life of the slip rings.

Notes

1. The rings should bear no weights, and the conductors should bear no external forces.

2. The conductors should be well protected to avoid damage of the insulating layer and malfunction of the product in installation.

3. Slip rings are precision electrical equipments and should be placed in dry and dust-free environment. Precautions should be taken in harsh situations.
