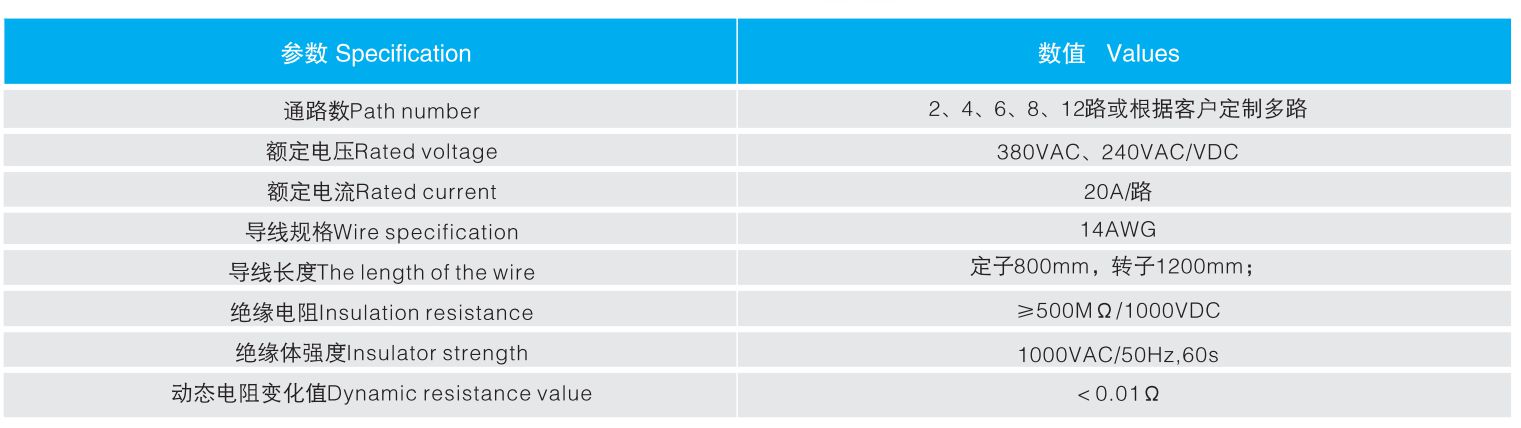

Parameter value:
1.Number of channels :2 or customized according to customer
2.Rated voltage: 380VAC, 240VAC / VDC
3.Rated current :20A / way

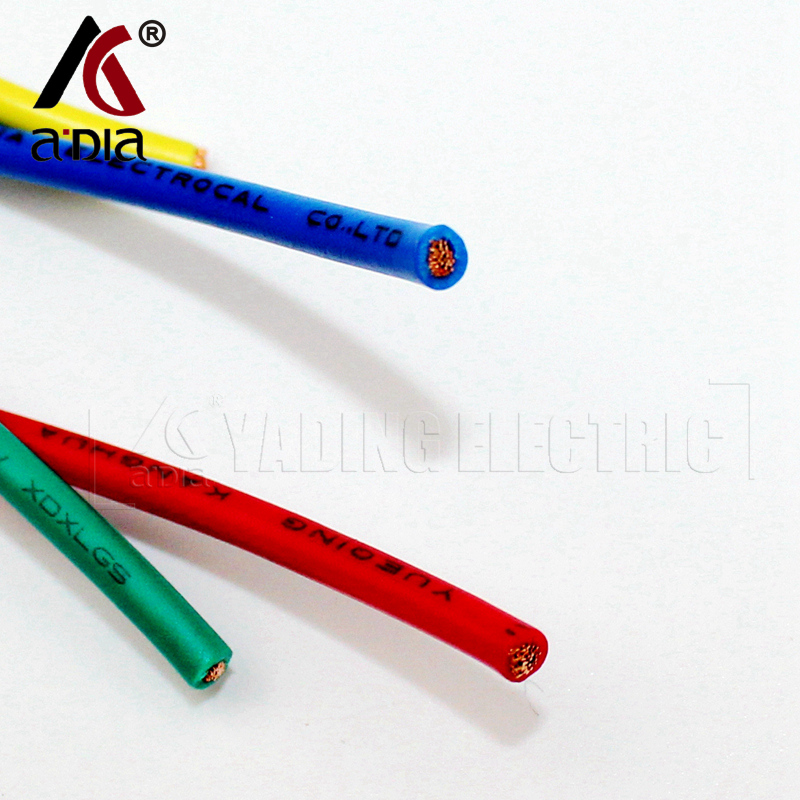

4.Wire size :14AWG
5.Wire length stator :800mm, rotor :1200mm;
6.Insulation resistance ≥ 500MΩ / 1000VDC
7.Insulator strength :1000VAC / 50Hz, 60s
8.Dynamic resistance change value <0.01Ω

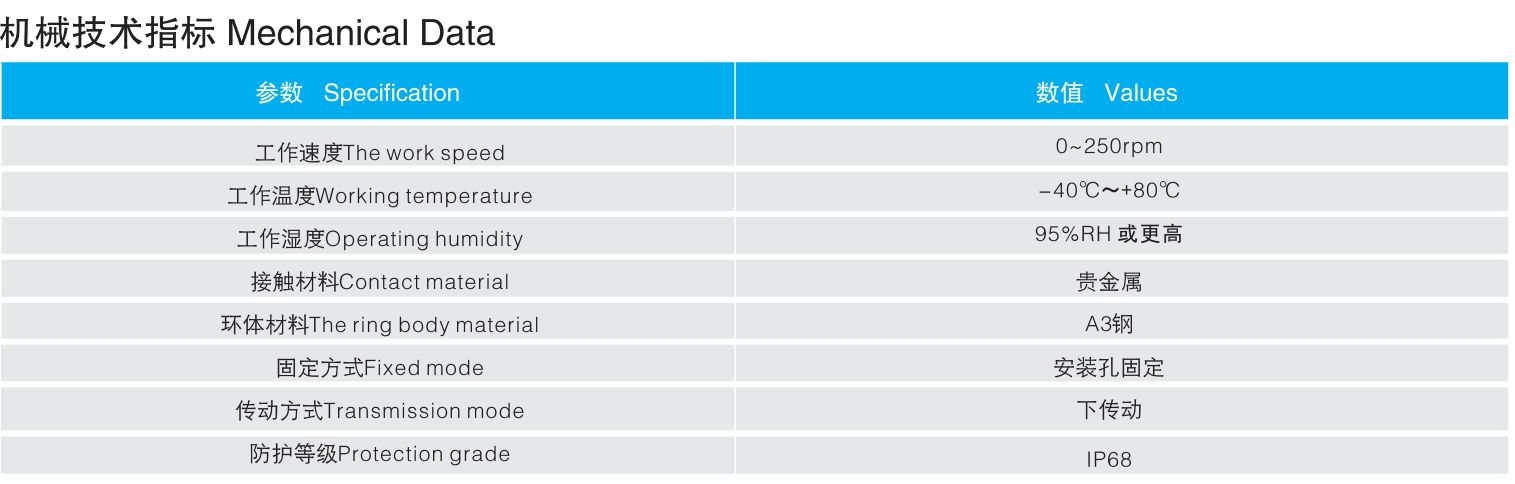

Mechanical technical indicators
1.Parameter value
2.Working speed :0 ~ 250rpm
3.Operating temperature :-40 ℃ ~ +80 ℃
4.Operating humidity :95% RH or higher
5.Contact material :precious metal
6.Shell material: A3 steel

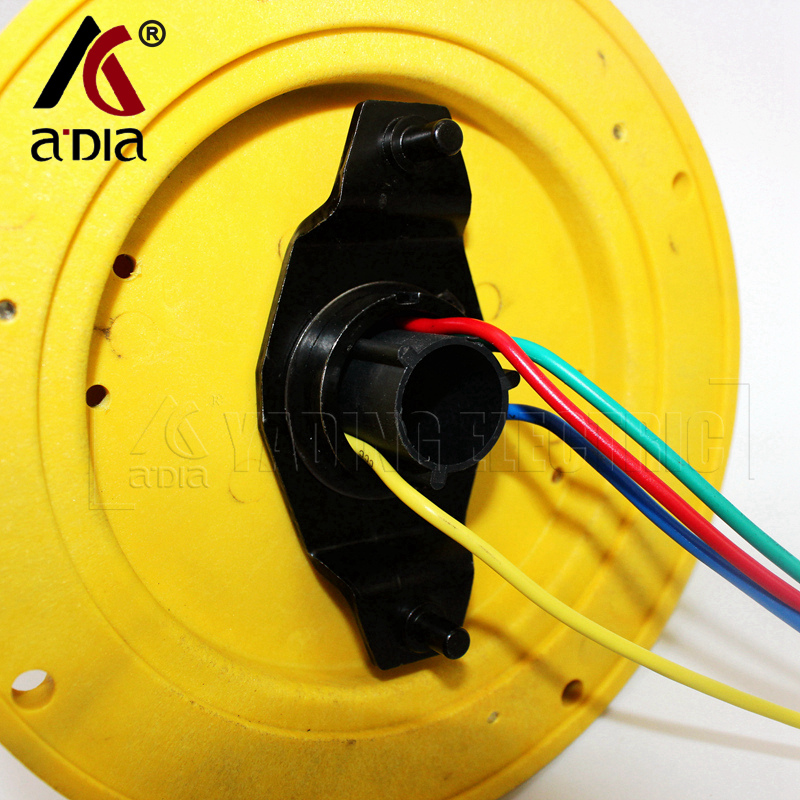

7.Fixed mounting holes are fixed
8.Drive mode drive
9.Protection class :IP68

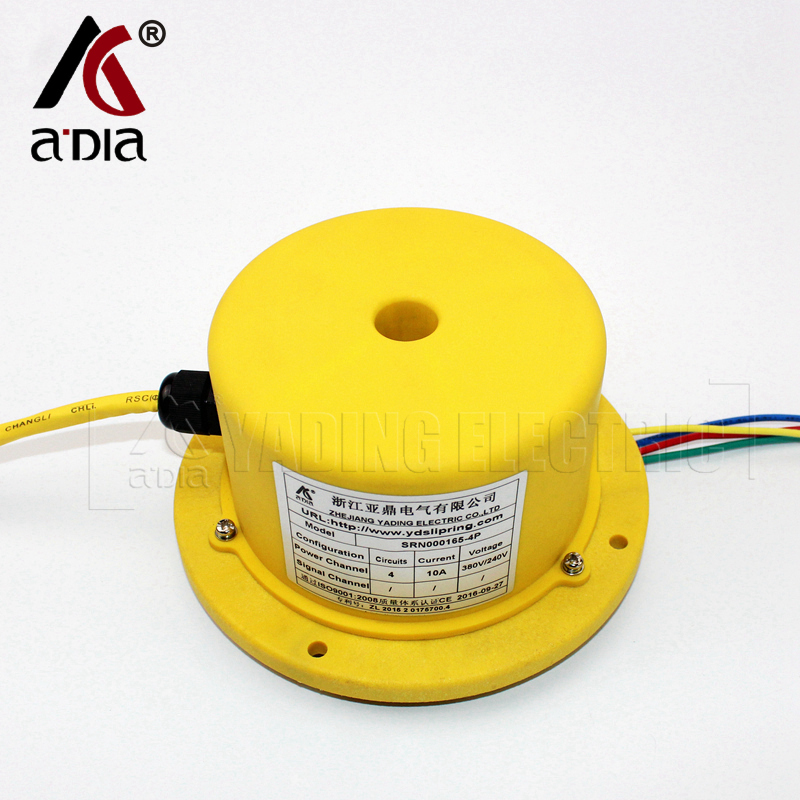

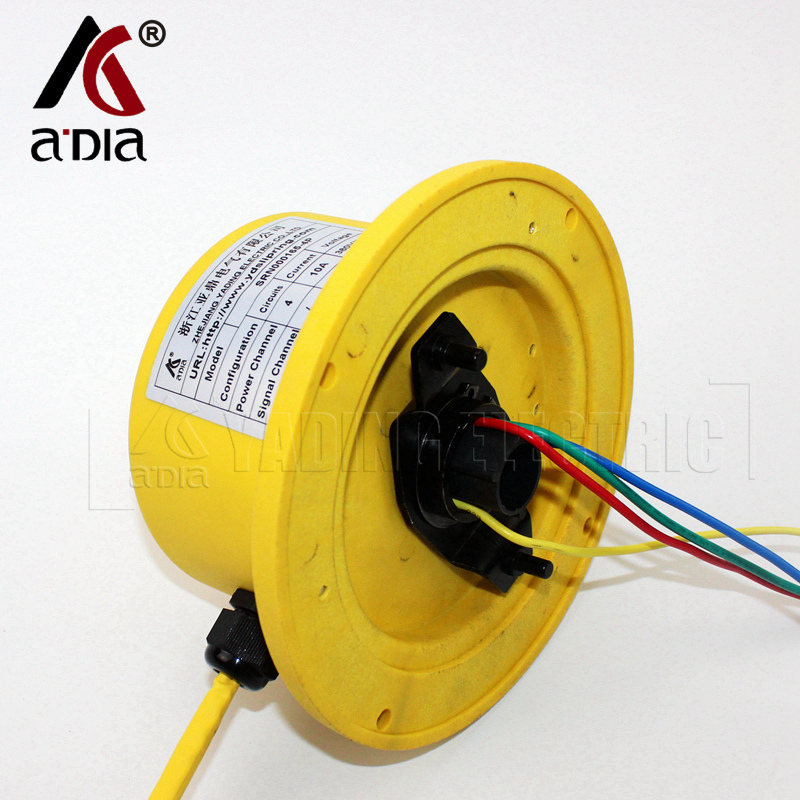

10.SRN000165-4P
