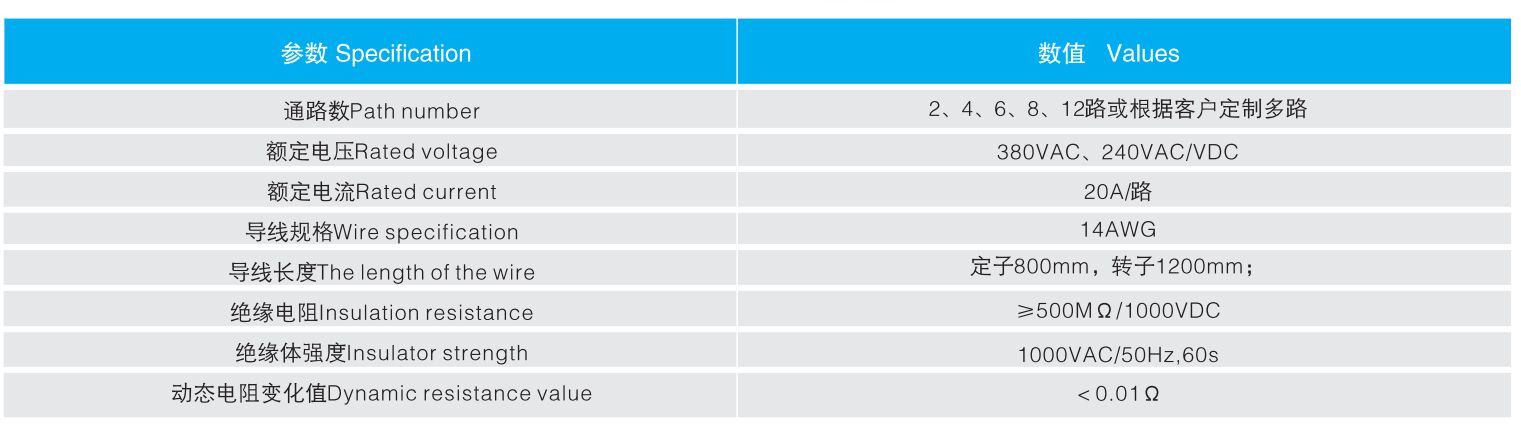

Parameter value:

1.Number of channels :2 or customized according to customer

2.Rated voltage: 380VAC, 240VAC / VDC

3.Rated current :20A / way

4.Wire size :14AWG

5.Wire length stator :800mm, rotor :1200mm;

6.Insulation resistance ≥ 500MΩ / 1000VDC

7.Insulator strength :1000VAC / 50Hz, 60s

8.Dynamic resistance change value <0.01Ω

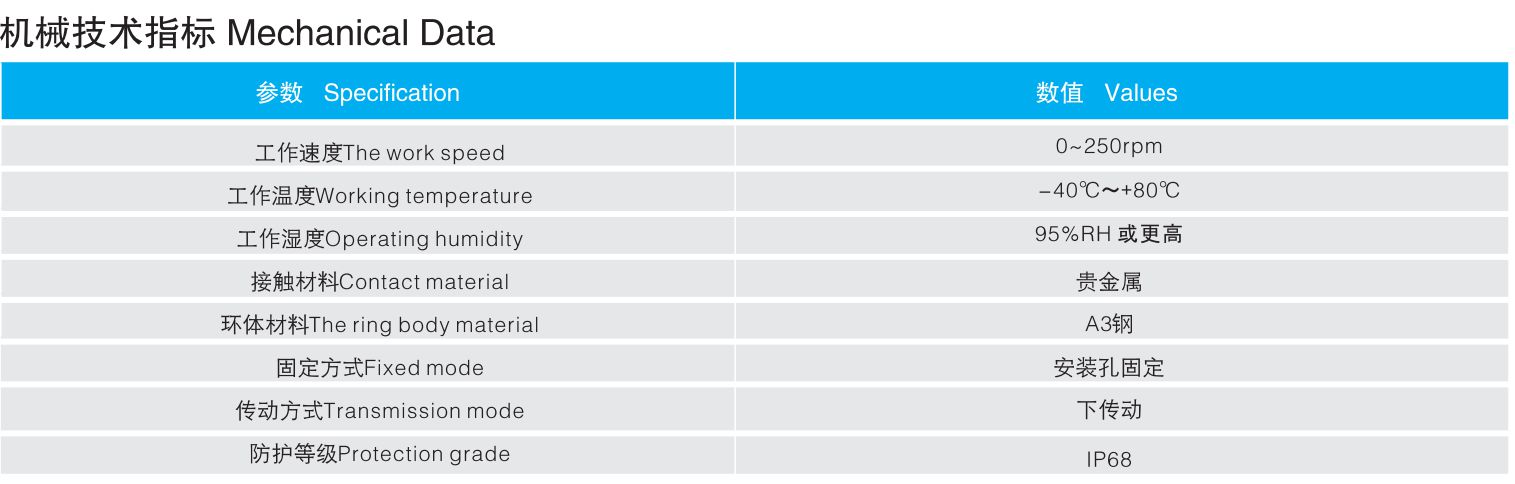

Mechanical technical indicators





1.Parameter value

2.Working speed :0 ~ 250rpm

3.Operating temperature :-40 ℃ ~ +80 ℃

4.Operating humidity :95% RH or higher

5.Contact material :precious metal

6.Shell material: A3 steel

7.Fixed mounting holes are fixed

8.Drive mode drive

9.Protection class :IP68

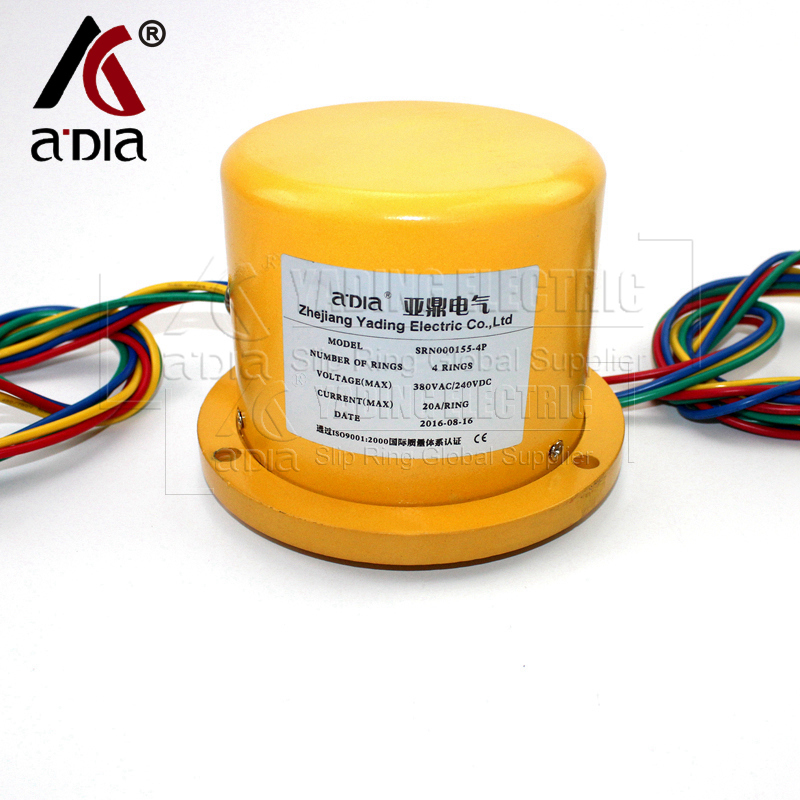

10.Model No:SRN00155-4P
