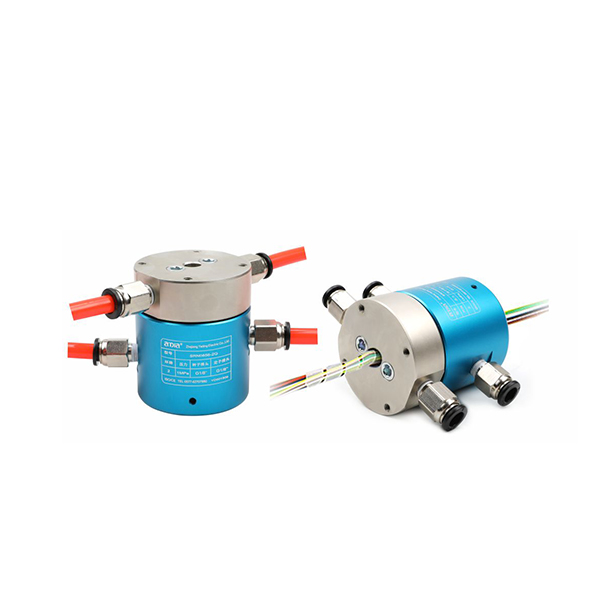

Features
Mixed power power line, signal line, Ethernet, USB, industrial bus, control line, solenoid valve, induction line, etc.
Standard flange installation form, can be customized hollow shaft installation;
The medium that can pass through are: compressed air, hydrogen, nitrogen, chemical mixture gas, steam, cooling water, hot water, hot oil, petroleum, sulfuric acid, beverage, etc.

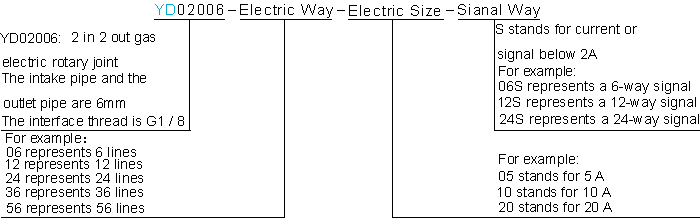

Order model description

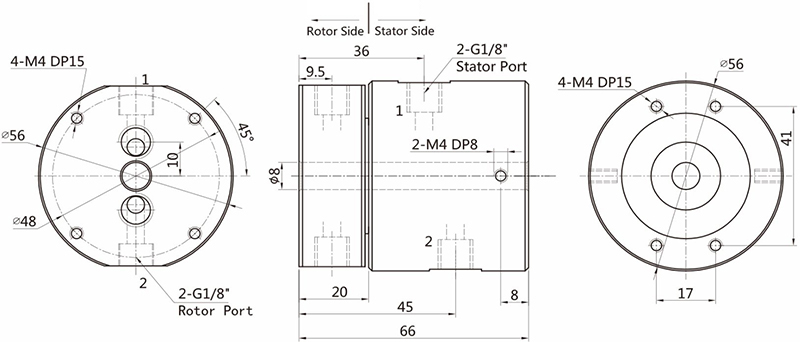

YD02006（2 in 2 out，6~8mm trachea，Pure pneumatic rotary joint）Size chart
List of Standard Models
|
Model |
Number of the trachea |
Interface size |
Adaptive trachea |
| YD02006 | 2 in 2 out | G1/8" | 6~8mm |

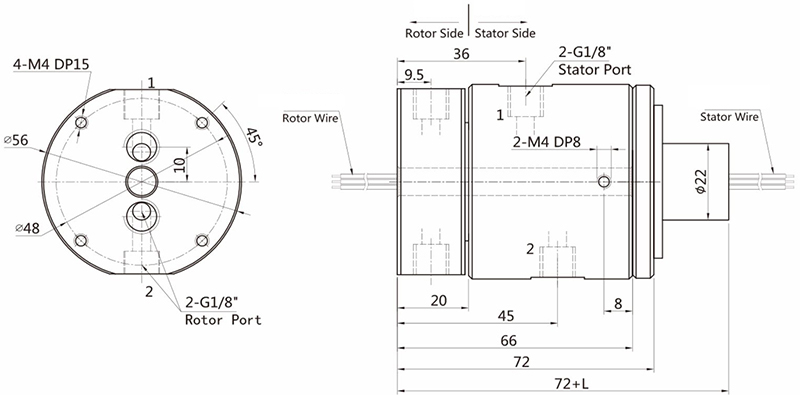

YD02006（2 in 2 out，6~8mm trachea）+6~36 road signal/2A(Adapts to battery valves and induction switches)
List of Standard Models
| Model | Number of the trachea | Interface size |
Adaptive trachea |
Signal approach | Length（mm） |
| YD02006-06 |
2 in 2 out |
G1/8" | 6~8mm | 6 | 14 |
|
YD02006-12 |
2 in 2 out |
G1/8" | 6~8mm | 12 | 21 |
|
YD02006-24s |
2 in 2 out |
G1/8" | 6~8mm | 24 | 35 |
|
YD02006-36s |
2 in 2 out |
G1/8" | 6~8mm | 36 | 52.3 |
|
YD02006-56S |
2 in 2 out |
G1/8" |
6~8mm |
56 | 82 |

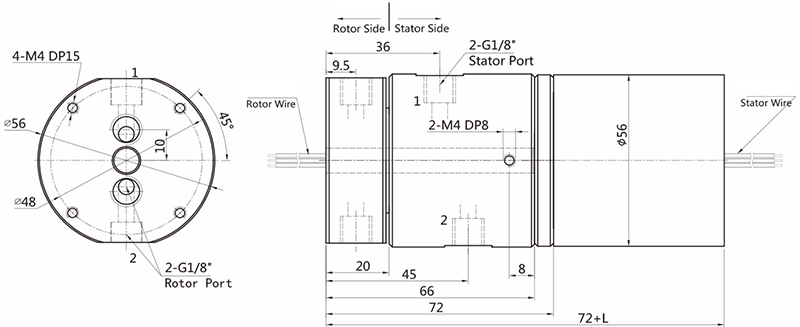

YD02006（2 in 2 out，6~8mm trachea）+Signal（5A）/10A
List of Standard Models
Model
Number of the trachea
Interface size
Adaptive trachea
Electricity（10A） road number
Signal（5A）
Length（mm）
YD02006-0605
2 in 2 out
G1/8"
6~8mm
0
6
38
YD02006-0610
2 in 2 out
G1/8"
6~8mm
6
0
38
YD02006-1205
2 in 2 out
G1/8"
6~8mm
0
12
55
YD02006-0610-0605
2 in 2 out
G1/8"
6~8mm
6
6
55
YD02006-1210
2 in 2 out
G1/8"
6~8mm
12
0
55
YD02006-0610-1205
2 in 2 out
G1/8"
6~8mm
6
12
71.5
YD02006-1210-0605
2 in 2 out
G1/8"
6~8mm
12
6
71.5
YD02006-1805
2 in 2 out
G1/8"
6~8mm
0
18
71.5
YD02006-1810
2 in 2 out
G1/8"
6~8mm
18
0
71.5
YD02006-0610-1805
2 in 2 out
G1/8"
6~8mm
6
18
88.5
YD02006-2405
2 in 2 out
G1/8"
6~8mm
0
24
88.5
YD02006-3005
2 in 2 out
G1/8"
6~8mm
0
30
106
YD02006-3605
2 in 2 out
G1/8"
6~8mm
0
36
125
Technical parameters
|
Number of the trachea |
2 in 2 out |
Maximum pressure |
Positive pressure：1Mpa，vacuo：-100kpa |
|
|
Number of the trachea |
6~8mm trachea G1/8 tooth |
Torque |
<0.2N.m |
|
|
|
Mechanical Technique Indicators |
|
Electrical Technique Indicators |
|
|
Parameter |
Numerical |
Parameter |
Numerical |
|
|
Working life |
20 million turn |
Power |
Signal |
|
|
Highest speed |
Continuous rotation 250/ min, intermittent rotation 1000/min |
Nomina Voltage |
0-240VAC/VDC |
0-240VAC/VDC |
|
Working temperature |
-30℃~80℃ |
Insulation resistance |
<500MΩ/300VDC |
<500MΩ/300VDC |
|
Working humidity |
0-85%RH |
Wire specifications |
AWG26#Silver-plated Teflon |
AWG26#Silver-plated Teflon |
|
Contact materials |
Precious metal contact |
Wire length |
Standard length 250mm (can be adjusted according to requirements) |
|
|
Case material |
Aluminum alloy |
Dielectric strength |
500VAC@50Hz，6s |
|
|
Protection grade |
IP51 |
Dynamic resistance change value |
<0.01Ω |
|
Features
Mixed power power line, signal line, Ethernet, USB, industrial bus, control line, solenoid valve, induction line, etc.
Standard flange installation form, can be customized hollow shaft installation;
The medium that can pass through are: compressed air, hydrogen, nitrogen, chemical mixture gas, steam, cooling water, hot water, hot oil, petroleum, sulfuric acid, beverage, etc.
Order model description
YD02006（2 in 2 out，6~8mm trachea，Pure pneumatic rotary joint）Size chart
List of Standard Models
|
Model |
Number of the trachea |
Interface size |
Adaptive trachea |
| YD02006 | 2 in 2 out | G1/8" | 6~8mm |
YD02006（2 in 2 out，6~8mm trachea）+6~36 road signal/2A(Adapts to battery valves and induction switches)
List of Standard Models
| Model | Number of the trachea | Interface size |
Adaptive trachea |
Signal approach | Length（mm） |
| YD02006-06 |
2 in 2 out |
G1/8" | 6~8mm | 6 | 14 |
|
YD02006-12 |
2 in 2 out |
G1/8" | 6~8mm | 12 | 21 |
|
YD02006-24s |
2 in 2 out |
G1/8" | 6~8mm | 24 | 35 |
|
YD02006-36s |
2 in 2 out |
G1/8" | 6~8mm | 36 | 52.3 |
|
YD02006-56S |
2 in 2 out |
G1/8" |
6~8mm |
56 | 82 |
YD02006（2 in 2 out，6~8mm trachea）+Signal（5A）/10A
List of Standard Models
Model
Number of the trachea
Interface size
Adaptive trachea
Electricity（10A） road number
Signal（5A）
Length（mm）
YD02006-0605
2 in 2 out
G1/8"
6~8mm
0
6
38
YD02006-0610
2 in 2 out
G1/8"
6~8mm
6
0
38
YD02006-1205
2 in 2 out
G1/8"
6~8mm
0
12
55
YD02006-0610-0605
2 in 2 out
G1/8"
6~8mm
6
6
55
YD02006-1210
2 in 2 out
G1/8"
6~8mm
12
0
55
YD02006-0610-1205
2 in 2 out
G1/8"
6~8mm
6
12
71.5
YD02006-1210-0605
2 in 2 out
G1/8"
6~8mm
12
6
71.5
YD02006-1805
2 in 2 out
G1/8"
6~8mm
0
18
71.5
YD02006-1810
2 in 2 out
G1/8"
6~8mm
18
0
71.5
YD02006-0610-1805
2 in 2 out
G1/8"
6~8mm
6
18
88.5
YD02006-2405
2 in 2 out
G1/8"
6~8mm
0
24
88.5
YD02006-3005
2 in 2 out
G1/8"
6~8mm
0
30
106
YD02006-3605
2 in 2 out
G1/8"
6~8mm
0
36
125
Technical parameters
|
Number of the trachea |
2 in 2 out |
Maximum pressure |
Positive pressure：1Mpa，vacuo：-100kpa |
|
|
Number of the trachea |
6~8mm trachea G1/8 tooth |
Torque |
<0.2N.m |
|
|
|
Mechanical Technique Indicators |
|
Electrical Technique Indicators |
|
|
Parameter |
Numerical |
Parameter |
Numerical |
|
|
Working life |
20 million turn |
Power |
Signal |
|
|
Highest speed |
Continuous rotation 250/ min, intermittent rotation 1000/min |
Nomina Voltage |
0-240VAC/VDC |
0-240VAC/VDC |
|
Working temperature |
-30℃~80℃ |
Insulation resistance |
<500MΩ/300VDC |
<500MΩ/300VDC |
|
Working humidity |
0-85%RH |
Wire specifications |
AWG26#Silver-plated Teflon |
AWG26#Silver-plated Teflon |
|
Contact materials |
Precious metal contact |
Wire length |
Standard length 250mm (can be adjusted according to requirements) |
|
|
Case material |
Aluminum alloy |
Dielectric strength |
500VAC@50Hz，6s |
|
|
Protection grade |
IP51 |
Dynamic resistance change value |
<0.01Ω |
|
