Features

Mixed power power line, signal line, Ethernet, USB, industrial bus, control line, solenoid valve, induction line, etc.
Standard flange installation form, can be customized hollow shaft installation;
The medium that can pass through are: compressed air, hydrogen, nitrogen, chemical mixture gas, steam, cooling water, hot water, hot oil, petroleum, sulfuric acid, beverage, etc.

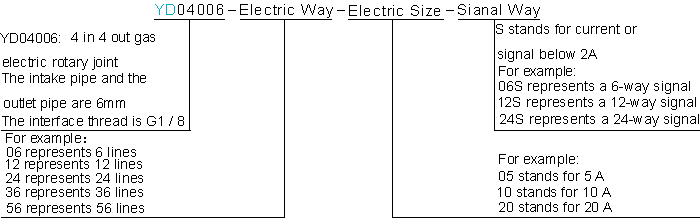

Order model description

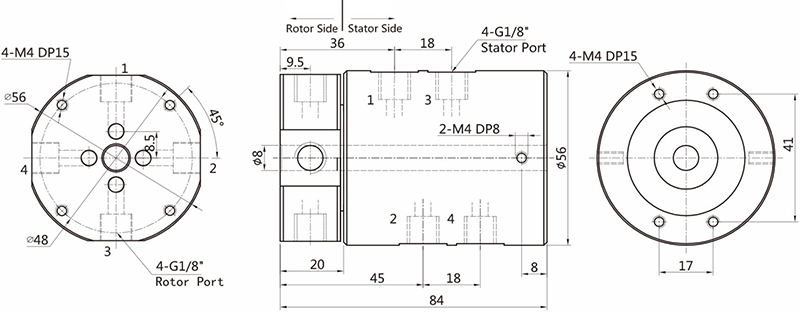

YD04006（4 in 4 out，6~8mm trachea，Pure pneumatic rotary joint）Size chart

List of Standard Models

Model	Number of the trachea	Interface size	Adaptive trachea
YD04006	4 in 4 out	G1/8"	6~8mm

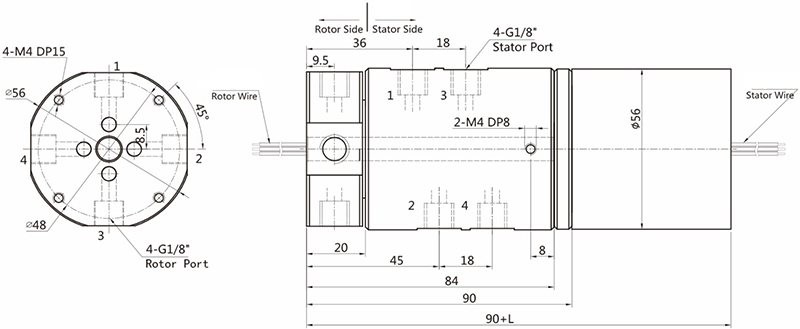

YD04006（4 in 4 out，6~8mm trachea）+6~36 road signal/2A(Adapts to battery valves and induction switches)

List of Standard Models

Model	Number of the trachea	Interface size	Adaptive trachea	Signal approach	Length（mm）
YD04006-06	4 in 4 out	G1/8"	6~8mm	6	14
YD04006-12	4 in 4 out	G1/8"	6~8mm	12	21
YD04006-24s	4 in 4 out	G1/8"	6~8mm	24	35
YD04006-36s	4 in 4 out	G1/8"	6~8mm	36	52.3
YD04006-56S	4 in 4 out	G1/8"	6~8mm	56	82

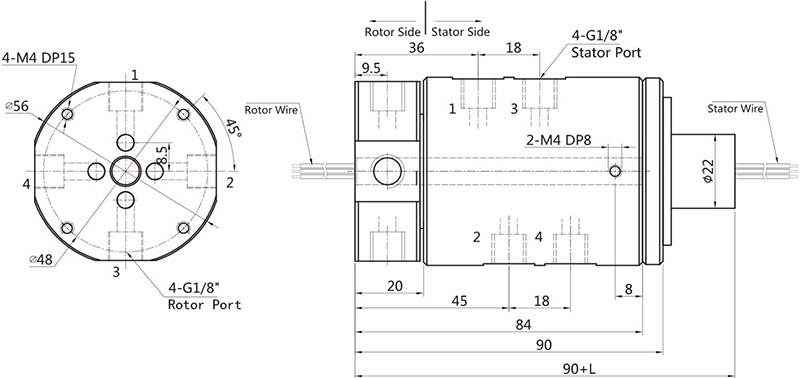

YD04006（4 in 4 out，6~8mm trachea）+Signal（5A）/10A

List of Standard Models

Model	Number of the trachea	Interface size	Adaptive trachea	Electricity（10A） road number	Signal（5A）	Length（mm）
YD04006-0605	4 in 4 out	G1/8"	6~8mm	0	6	38
YD04006-0610	4 in 4 out	G1/8"	6~8mm	6	0	38
YD04006-1205	4 in 4 out	G1/8"	6~8mm	0	12	55
YD04006-0610-0605	4 in 4 out	G1/8"	6~8mm	6	6	55
YD04006-1210	4 in 4 out	G1/8"	6~8mm	12	0	55
YD04006-0610-1205	4 in 4 out	G1/8"	6~8mm	6	12	71.5
YD04006-1210-0605	4 in 4 out	G1/8"	6~8mm	12	6	71.5
YD04006-1805	4 in 4 out	G1/8"	6~8mm	0	18	71.5
YD04006-1810	4 in 4 out	G1/8"	6~8mm	18	0	71.5
YD04006-0610-1805	4 in 4 out	G1/8"	6~8mm	6	18	88.5
YD04006-2405	4 in 4 out	G1/8"	6~8mm	0	24	88.5
YD04006-3005	4 in 4 out	G1/8"	6~8mm	0	30	106
YD04006-3605	4 in 4 out	G1/8"	6~8mm	0	36	125

Technical parameters

Number of the trachea	4 in 4 out	Maximum pressure	Positive pressure：1Mpa，vacuo：-100kpa
Number of the trachea	4~8mm trachea G1/8 tooth	Torque	<0.2N.m
	Mechanical Technique Indicators		Electrical Technique Indicators
Parameter	Numerical	Parameter	Numerical
Working life	20 million turn		Power	Signal
Highest speed	Continuous rotation 250/ min, intermittent rotation 1000/min	Nomina Voltage	0-240VAC/VDC	0-240VAC/VDC
Working  temperature	-30℃~80℃	Insulation resistance	<500MΩ/300VDC	<500MΩ/300VDC
Working humidity	0-85%RH	Wire specifications	AWG26#Silver-plated Teflon	AWG26#Silver-plated Teflon
Contact materials	Precious metal contact	Wire length	Standard length 250mm (can be adjusted according to requirements)
Case material	Aluminum alloy	Dielectric strength	500VAC@50Hz，6s
Protection grade	IP51	Dynamic resistance change value	<0.01Ω

Features

Mixed power power line, signal line, Ethernet, USB, industrial bus, control line, solenoid valve, induction line, etc.
Standard flange installation form, can be customized hollow shaft installation;
The medium that can pass through are: compressed air, hydrogen, nitrogen, chemical mixture gas, steam, cooling water, hot water, hot oil, petroleum, sulfuric acid, beverage, etc.

Order model description

YD04006（4 in 4 out，6~8mm trachea，Pure pneumatic rotary joint）Size chart

List of Standard Models

Model	Number of the trachea	Interface size	Adaptive trachea
YD04006	4 in 4 out	G1/8"	6~8mm

YD04006（4 in 4 out，6~8mm trachea）+6~36 road signal/2A(Adapts to battery valves and induction switches)

List of Standard Models

Model	Number of the trachea	Interface size	Adaptive trachea	Signal approach	Length（mm）
YD04006-06	4 in 4 out	G1/8"	6~8mm	6	14
YD04006-12	4 in 4 out	G1/8"	6~8mm	12	21
YD04006-24s	4 in 4 out	G1/8"	6~8mm	24	35
YD04006-36s	4 in 4 out	G1/8"	6~8mm	36	52.3
YD04006-56S	4 in 4 out	G1/8"	6~8mm	56	82

YD04006（4 in 4 out，6~8mm trachea）+Signal（5A）/10A

List of Standard Models

Model	Number of the trachea	Interface size	Adaptive trachea	Electricity（10A） road number	Signal（5A）	Length（mm）
YD04006-0605	4 in 4 out	G1/8"	6~8mm	0	6	38
YD04006-0610	4 in 4 out	G1/8"	6~8mm	6	0	38
YD04006-1205	4 in 4 out	G1/8"	6~8mm	0	12	55
YD04006-0610-0605	4 in 4 out	G1/8"	6~8mm	6	6	55
YD04006-1210	4 in 4 out	G1/8"	6~8mm	12	0	55
YD04006-0610-1205	4 in 4 out	G1/8"	6~8mm	6	12	71.5
YD04006-1210-0605	4 in 4 out	G1/8"	6~8mm	12	6	71.5
YD04006-1805	4 in 4 out	G1/8"	6~8mm	0	18	71.5
YD04006-1810	4 in 4 out	G1/8"	6~8mm	18	0	71.5
YD04006-0610-1805	4 in 4 out	G1/8"	6~8mm	6	18	88.5
YD04006-2405	4 in 4 out	G1/8"	6~8mm	0	24	88.5
YD04006-3005	4 in 4 out	G1/8"	6~8mm	0	30	106
YD04006-3605	4 in 4 out	G1/8"	6~8mm	0	36	125

Technical parameters

Number of the trachea	4 in 4 out	Maximum pressure	Positive pressure：1Mpa，vacuo：-100kpa
Number of the trachea	4~8mm trachea G1/8 tooth	Torque	<0.2N.m
	Mechanical Technique Indicators		Electrical Technique Indicators
Parameter	Numerical	Parameter	Numerical
Working life	20 million turn		Power	Signal
Highest speed	Continuous rotation 250/ min, intermittent rotation 1000/min	Nomina Voltage	0-240VAC/VDC	0-240VAC/VDC
Working  temperature	-30℃~80℃	Insulation resistance	<500MΩ/300VDC	<500MΩ/300VDC
Working humidity	0-85%RH	Wire specifications	AWG26#Silver-plated Teflon	AWG26#Silver-plated Teflon
Contact materials	Precious metal contact	Wire length	Standard length 250mm (can be adjusted according to requirements)
Case material	Aluminum alloy	Dielectric strength	500VAC@50Hz，6s
Protection grade	IP51	Dynamic resistance change value	<0.01Ω

Features

Mixed power power line, signal line, Ethernet, USB, industrial bus, control line, solenoid valve, induction line, etc.
Standard flange installation form, can be customized hollow shaft installation;
The medium that can pass through are: compressed air, hydrogen, nitrogen, chemical mixture gas, steam, cooling water, hot water, hot oil, petroleum, sulfuric acid, beverage, etc.

Order model description

YD04006（4 in 4 out，6~8mm trachea，Pure pneumatic rotary joint）Size chart

List of Standard Models

Model	Number of the trachea	Interface size	Adaptive trachea
YD04006	4 in 4 out	G1/8"	6~8mm

YD04006（4 in 4 out，6~8mm trachea）+6~36 road signal/2A(Adapts to battery valves and induction switches)

List of Standard Models

Model	Number of the trachea	Interface size	Adaptive trachea	Signal approach	Length（mm）
YD04006-06	4 in 4 out	G1/8"	6~8mm	6	14
YD04006-12	4 in 4 out	G1/8"	6~8mm	12	21
YD04006-24s	4 in 4 out	G1/8"	6~8mm	24	35
YD04006-36s	4 in 4 out	G1/8"	6~8mm	36	52.3
YD04006-56S	4 in 4 out	G1/8"	6~8mm	56	82

YD04006（4 in 4 out，6~8mm trachea）+Signal（5A）/10A

List of Standard Models

Model	Number of the trachea	Interface size	Adaptive trachea	Electricity（10A） road number	Signal（5A）	Length（mm）
YD04006-0605	4 in 4 out	G1/8"	6~8mm	0	6	38
YD04006-0610	4 in 4 out	G1/8"	6~8mm	6	0	38
YD04006-1205	4 in 4 out	G1/8"	6~8mm	0	12	55
YD04006-0610-0605	4 in 4 out	G1/8"	6~8mm	6	6	55
YD04006-1210	4 in 4 out	G1/8"	6~8mm	12	0	55
YD04006-0610-1205	4 in 4 out	G1/8"	6~8mm	6	12	71.5
YD04006-1210-0605	4 in 4 out	G1/8"	6~8mm	12	6	71.5
YD04006-1805	4 in 4 out	G1/8"	6~8mm	0	18	71.5
YD04006-1810	4 in 4 out	G1/8"	6~8mm	18	0	71.5
YD04006-0610-1805	4 in 4 out	G1/8"	6~8mm	6	18	88.5
YD04006-2405	4 in 4 out	G1/8"	6~8mm	0	24	88.5
YD04006-3005	4 in 4 out	G1/8"	6~8mm	0	30	106
YD04006-3605	4 in 4 out	G1/8"	6~8mm	0	36	125

Technical parameters

Number of the trachea	4 in 4 out	Maximum pressure	Positive pressure：1Mpa，vacuo：-100kpa
Number of the trachea	4~8mm trachea G1/8 tooth	Torque	<0.2N.m
	Mechanical Technique Indicators		Electrical Technique Indicators
Parameter	Numerical	Parameter	Numerical
Working life	20 million turn		Power	Signal
Highest speed	Continuous rotation 250/ min, intermittent rotation 1000/min	Nomina Voltage	0-240VAC/VDC	0-240VAC/VDC
Working  temperature	-30℃~80℃	Insulation resistance	<500MΩ/300VDC	<500MΩ/300VDC
Working humidity	0-85%RH	Wire specifications	AWG26#Silver-plated Teflon	AWG26#Silver-plated Teflon
Contact materials	Precious metal contact	Wire length	Standard length 250mm (can be adjusted according to requirements)
Case material	Aluminum alloy	Dielectric strength	500VAC@50Hz，6s
Protection grade	IP51	Dynamic resistance change value	<0.01Ω

Features

Mixed power power line, signal line, Ethernet, USB, industrial bus, control line, solenoid valve, induction line, etc.
Standard flange installation form, can be customized hollow shaft installation;
The medium that can pass through are: compressed air, hydrogen, nitrogen, chemical mixture gas, steam, cooling water, hot water, hot oil, petroleum, sulfuric acid, beverage, etc.

Order model description

YD04006（4 in 4 out，6~8mm trachea，Pure pneumatic rotary joint）Size chart

List of Standard Models

Model	Number of the trachea	Interface size	Adaptive trachea
YD04006	4 in 4 out	G1/8"	6~8mm

YD04006（4 in 4 out，6~8mm trachea）+6~36 road signal/2A(Adapts to battery valves and induction switches)

List of Standard Models

Model	Number of the trachea	Interface size	Adaptive trachea	Signal approach	Length（mm）
YD04006-06	4 in 4 out	G1/8"	6~8mm	6	14
YD04006-12	4 in 4 out	G1/8"	6~8mm	12	21
YD04006-24s	4 in 4 out	G1/8"	6~8mm	24	35
YD04006-36s	4 in 4 out	G1/8"	6~8mm	36	52.3
YD04006-56S	4 in 4 out	G1/8"	6~8mm	56	82

YD04006（4 in 4 out，6~8mm trachea）+Signal（5A）/10A

List of Standard Models

Model	Number of the trachea	Interface size	Adaptive trachea	Electricity（10A） road number	Signal（5A）	Length（mm）
YD04006-0605	4 in 4 out	G1/8"	6~8mm	0	6	38
YD04006-0610	4 in 4 out	G1/8"	6~8mm	6	0	38
YD04006-1205	4 in 4 out	G1/8"	6~8mm	0	12	55
YD04006-0610-0605	4 in 4 out	G1/8"	6~8mm	6	6	55
YD04006-1210	4 in 4 out	G1/8"	6~8mm	12	0	55
YD04006-0610-1205	4 in 4 out	G1/8"	6~8mm	6	12	71.5
YD04006-1210-0605	4 in 4 out	G1/8"	6~8mm	12	6	71.5
YD04006-1805	4 in 4 out	G1/8"	6~8mm	0	18	71.5
YD04006-1810	4 in 4 out	G1/8"	6~8mm	18	0	71.5
YD04006-0610-1805	4 in 4 out	G1/8"	6~8mm	6	18	88.5
YD04006-2405	4 in 4 out	G1/8"	6~8mm	0	24	88.5
YD04006-3005	4 in 4 out	G1/8"	6~8mm	0	30	106
YD04006-3605	4 in 4 out	G1/8"	6~8mm	0	36	125

Technical parameters

Number of the trachea	4 in 4 out	Maximum pressure	Positive pressure：1Mpa，vacuo：-100kpa
Number of the trachea	4~8mm trachea G1/8 tooth	Torque	<0.2N.m
	Mechanical Technique Indicators		Electrical Technique Indicators
Parameter	Numerical	Parameter	Numerical
Working life	20 million turn		Power	Signal
Highest speed	Continuous rotation 250/ min, intermittent rotation 1000/min	Nomina Voltage	0-240VAC/VDC	0-240VAC/VDC
Working  temperature	-30℃~80℃	Insulation resistance	<500MΩ/300VDC	<500MΩ/300VDC
Working humidity	0-85%RH	Wire specifications	AWG26#Silver-plated Teflon	AWG26#Silver-plated Teflon
Contact materials	Precious metal contact	Wire length	Standard length 250mm (can be adjusted according to requirements)
Case material	Aluminum alloy	Dielectric strength	500VAC@50Hz，6s
Protection grade	IP51	Dynamic resistance change value	<0.01Ω
