Features
Mixed power power line, signal line, Ethernet, USB, industrial bus, control line, solenoid valve, induction line, etc.
Standard flange installation form, can be customized hollow shaft installation;
The medium that can pass through are: compressed air, hydrogen, nitrogen, chemical mixture gas, steam, cooling water, hot water, hot oil, petroleum, sulfuric acid, beverage, etc.

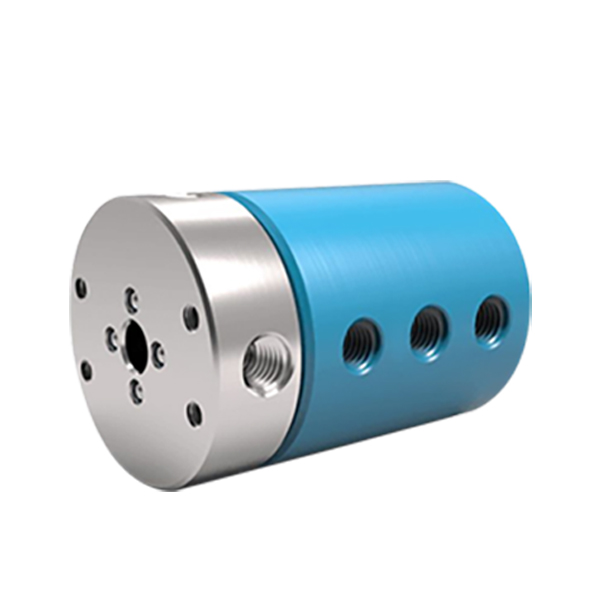

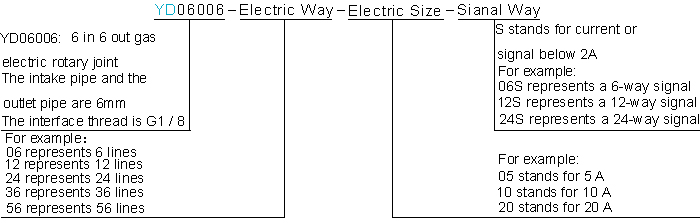

Order model description
YD06006（6 in 6 out，6~8mm trachea，Pure pneumatic rotary joint）Size chart
List of Standard Models
|
Model |
Number of the trachea |
Interface size |
Adaptive trachea |
| YD06006 | 6 in 6 out | G1/8" | 6~8mm |
YD06006（6 in 6 out，6~8mm trachea）+6~36 road signal/2A(Adapts to battery valves and induction switches)
List of Standard Models
| Model | Number of the trachea | Interface size |
Adaptive trachea |
Signal approach | Length（mm） |
| YD06006-06 |
6 in 6 out |
G1/8" | 6~8mm | 6 | 14 |
|
YD06006-12 |
6 in 6 out |
G1/8" | 6~8mm | 12 | 21 |
|
YD06006-24s |
6 in 6 out |
G1/8" | 6~8mm | 24 | 35 |
|
YD06006-36s |
6 in 6 out |
G1/8" | 6~8mm | 36 | 52.3 |
|
YD06006-56S |
6 in 6 out |
G1/8" |
6~8mm |
56 | 82 |
YD06006（6 in 6 out，6~8mm trachea）+Signal（5A）/10A
List of Standard Models
|
Model |
Number of the trachea |
Interface size | Adaptive trachea |
Electricity（10A） road number |
Signal（5A） |
Length（mm） |
|
YD06006-0605 |
6 in 6 out |
G1/8" |
6~8mm |
0 | 6 | 38 |
|
YD06006-0610 |
6 in 6 out |
G1/8" |
6~8mm |
6 | 0 | 38 |
|
YD06006-1205 |
6 in 6 out |
G1/8" |
6~8mm |
0 | 12 | 55 |
|
YD06006-0610-0605 |
6 in 6 out |
G1/8" |
6~8mm |
6 | 6 | 55 |
|
YD06006-1210 |
6 in 6 out |
G1/8" |
6~8mm |
12 | 0 | 55 |
|
YD06006-0610-1205 |
6 in 6 out |
G1/8" |
6~8mm |
6 | 12 | 71.5 |
|
YD06006-1210-0605 |
6 in 6 out |
G1/8" |
6~8mm |
12 | 6 |
71.5 |
|
YD06006-1805 |
6 in 6 out |
G1/8" |
6~8mm |
0 | 18 |
71.5 |
|
YD06006-1810 |
6 in 6 out |
G1/8" |
6~8mm |
18 | 0 |
71.5 |
|
YD06006-0610-1805 |
6 in 6 out |
G1/8" |
6~8mm |
6 | 18 | 88.5 |
|
YD06006-2405 |
6 in 6 out |
G1/8" |
6~8mm |
0 | 24 | 88.5 |
|
YD06006-3005 |
6 in 6 out |
G1/8" |
6~8mm |
0 | 30 | 106 |
|
YD06006-3605 |
6 in 6 out |
G1/8" |
6~8mm |
0 | 36 | 125 |
Technical parameters
|
Number of the trachea |
6 in 6 out |
Maximum pressure |
Positive pressure：1Mpa，vacuo：-100kpa |
|
|
Number of the trachea |
4~8mm trachea G1/8 tooth |
Torque |
<0.4N.m |
|
|
|
Mechanical Technique Indicators |
|
Electrical Technique Indicators |
|
|
Parameter |
Numerical |
Parameter |
Numerical |
|
|
Working life |
20 million turn |
Power |
Signal |
|
|
Highest speed |
Continuous rotation 250/ min, intermittent rotation 1000/min |
Nomina Voltage |
0-240VAC/VDC |
0-240VAC/VDC |
|
Working temperature |
-30℃~80℃ |
Insulation resistance |
<500MΩ/300VDC |
<500MΩ/300VDC |
|
Working humidity |
0-85%RH |
Wire specifications |
AWG26#Silver-plated Teflon |
AWG26#Silver-plated Teflon |
|
Contact materials |
Precious metal contact |
Wire length |
Standard length 250mm (can be adjusted according to requirements) |
|
|
Case material |
Aluminum alloy |
Dielectric strength |
500VAC@50Hz，6s |
|
|
Protection grade |
IP51 |
Dynamic resistance change value |
<0.01Ω |
|
Features
Mixed power power line, signal line, Ethernet, USB, industrial bus, control line, solenoid valve, induction line, etc.
Standard flange installation form, can be customized hollow shaft installation;
The medium that can pass through are: compressed air, hydrogen, nitrogen, chemical mixture gas, steam, cooling water, hot water, hot oil, petroleum, sulfuric acid, beverage, etc.
Order model description
YD06006（6 in 6 out，6~8mm trachea，Pure pneumatic rotary joint）Size chart
List of Standard Models
|
Model |
Number of the trachea |
Interface size |
Adaptive trachea |
| YD06006 | 6 in 6 out | G1/8" | 6~8mm |
YD06006（6 in 6 out，6~8mm trachea）+6~36 road signal/2A(Adapts to battery valves and induction switches)
List of Standard Models
| Model | Number of the trachea | Interface size |
Adaptive trachea |
Signal approach | Length（mm） |
| YD06006-06 |
6 in 6 out |
G1/8" | 6~8mm | 6 | 14 |
|
YD06006-12 |
6 in 6 out |
G1/8" | 6~8mm | 12 | 21 |
|
YD06006-24s |
6 in 6 out |
G1/8" | 6~8mm | 24 | 35 |
|
YD06006-36s |
6 in 6 out |
G1/8" | 6~8mm | 36 | 52.3 |
|
YD06006-56S |
6 in 6 out |
G1/8" |
6~8mm |
56 | 82 |
YD06006（6 in 6 out，6~8mm trachea）+Signal（5A）/10A
List of Standard Models
|
Model |
Number of the trachea |
Interface size | Adaptive trachea |
Electricity（10A） road number |
Signal（5A） |
Length（mm） |
|
YD06006-0605 |
6 in 6 out |
G1/8" |
6~8mm |
0 | 6 | 38 |
|
YD06006-0610 |
6 in 6 out |
G1/8" |
6~8mm |
6 | 0 | 38 |
|
YD06006-1205 |
6 in 6 out |
G1/8" |
6~8mm |
0 | 12 | 55 |
|
YD06006-0610-0605 |
6 in 6 out |
G1/8" |
6~8mm |
6 | 6 | 55 |
|
YD06006-1210 |
6 in 6 out |
G1/8" |
6~8mm |
12 | 0 | 55 |
|
YD06006-0610-1205 |
6 in 6 out |
G1/8" |
6~8mm |
6 | 12 | 71.5 |
|
YD06006-1210-0605 |
6 in 6 out |
G1/8" |
6~8mm |
12 | 6 |
71.5 |
|
YD06006-1805 |
6 in 6 out |
G1/8" |
6~8mm |
0 | 18 |
71.5 |
|
YD06006-1810 |
6 in 6 out |
G1/8" |
6~8mm |
18 | 0 |
71.5 |
|
YD06006-0610-1805 |
6 in 6 out |
G1/8" |
6~8mm |
6 | 18 | 88.5 |
|
YD06006-2405 |
6 in 6 out |
G1/8" |
6~8mm |
0 | 24 | 88.5 |
|
YD06006-3005 |
6 in 6 out |
G1/8" |
6~8mm |
0 | 30 | 106 |
|
YD06006-3605 |
6 in 6 out |
G1/8" |
6~8mm |
0 | 36 | 125 |
Technical parameters
|
Number of the trachea |
6 in 6 out |
Maximum pressure |
Positive pressure：1Mpa，vacuo：-100kpa |
|
|
Number of the trachea |
4~8mm trachea G1/8 tooth |
Torque |
<0.4N.m |
|
|
|
Mechanical Technique Indicators |
|
Electrical Technique Indicators |
|
|
Parameter |
Numerical |
Parameter |
Numerical |
|
|
Working life |
20 million turn |
Power |
Signal |
|
|
Highest speed |
Continuous rotation 250/ min, intermittent rotation 1000/min |
Nomina Voltage |
0-240VAC/VDC |
0-240VAC/VDC |
|
Working temperature |
-30℃~80℃ |
Insulation resistance |
<500MΩ/300VDC |
<500MΩ/300VDC |
|
Working humidity |
0-85%RH |
Wire specifications |
AWG26#Silver-plated Teflon |
AWG26#Silver-plated Teflon |
|
Contact materials |
Precious metal contact |
Wire length |
Standard length 250mm (can be adjusted according to requirements) |
|
|
Case material |
Aluminum alloy |
Dielectric strength |
500VAC@50Hz，6s |
|
|
Protection grade |
IP51 |
Dynamic resistance change value |
<0.01Ω |
|
Features
Mixed power power line, signal line, Ethernet, USB, industrial bus, control line, solenoid valve, induction line, etc.
Standard flange installation form, can be customized hollow shaft installation;
The medium that can pass through are: compressed air, hydrogen, nitrogen, chemical mixture gas, steam, cooling water, hot water, hot oil, petroleum, sulfuric acid, beverage, etc.
Order model description
YD06006（6 in 6 out，6~8mm trachea，Pure pneumatic rotary joint）Size chart
List of Standard Models
|
Model |
Number of the trachea |
Interface size |
Adaptive trachea |
| YD06006 | 6 in 6 out | G1/8" | 6~8mm |
YD06006（6 in 6 out，6~8mm trachea）+6~36 road signal/2A(Adapts to battery valves and induction switches)
List of Standard Models
| Model | Number of the trachea | Interface size |
Adaptive trachea |
Signal approach | Length（mm） |
| YD06006-06 |
6 in 6 out |
G1/8" | 6~8mm | 6 | 14 |
|
YD06006-12 |
6 in 6 out |
G1/8" | 6~8mm | 12 | 21 |
|
YD06006-24s |
6 in 6 out |
G1/8" | 6~8mm | 24 | 35 |
|
YD06006-36s |
6 in 6 out |
G1/8" | 6~8mm | 36 | 52.3 |
|
YD06006-56S |
6 in 6 out |
G1/8" |
6~8mm |
56 | 82 |
YD06006（6 in 6 out，6~8mm trachea）+Signal（5A）/10A
List of Standard Models
|
Model |
Number of the trachea |
Interface size | Adaptive trachea |
Electricity（10A） road number |
Signal（5A） |
Length（mm） |
|
YD06006-0605 |
6 in 6 out |
G1/8" |
6~8mm |
0 | 6 | 38 |
|
YD06006-0610 |
6 in 6 out |
G1/8" |
6~8mm |
6 | 0 | 38 |
|
YD06006-1205 |
6 in 6 out |
G1/8" |
6~8mm |
0 | 12 | 55 |
|
YD06006-0610-0605 |
6 in 6 out |
G1/8" |
6~8mm |
6 | 6 | 55 |
|
YD06006-1210 |
6 in 6 out |
G1/8" |
6~8mm |
12 | 0 | 55 |
|
YD06006-0610-1205 |
6 in 6 out |
G1/8" |
6~8mm |
6 | 12 | 71.5 |
|
YD06006-1210-0605 |
6 in 6 out |
G1/8" |
6~8mm |
12 | 6 |
71.5 |
|
YD06006-1805 |
6 in 6 out |
G1/8" |
6~8mm |
0 | 18 |
71.5 |
|
YD06006-1810 |
6 in 6 out |
G1/8" |
6~8mm |
18 | 0 |
71.5 |
|
YD06006-0610-1805 |
6 in 6 out |
G1/8" |
6~8mm |
6 | 18 | 88.5 |
|
YD06006-2405 |
6 in 6 out |
G1/8" |
6~8mm |
0 | 24 | 88.5 |
|
YD06006-3005 |
6 in 6 out |
G1/8" |
6~8mm |
0 | 30 | 106 |
|
YD06006-3605 |
6 in 6 out |
G1/8" |
6~8mm |
0 | 36 | 125 |
Technical parameters
|
Number of the trachea |
6 in 6 out |
Maximum pressure |
Positive pressure：1Mpa，vacuo：-100kpa |
|
|
Number of the trachea |
4~8mm trachea G1/8 tooth |
Torque |
<0.4N.m |
|
|
|
Mechanical Technique Indicators |
|
Electrical Technique Indicators |
|
|
Parameter |
Numerical |
Parameter |
Numerical |
|
|
Working life |
20 million turn |
Power |
Signal |
|
|
Highest speed |
Continuous rotation 250/ min, intermittent rotation 1000/min |
Nomina Voltage |
0-240VAC/VDC |
0-240VAC/VDC |
|
Working temperature |
-30℃~80℃ |
Insulation resistance |
<500MΩ/300VDC |
<500MΩ/300VDC |
|
Working humidity |
0-85%RH |
Wire specifications |
AWG26#Silver-plated Teflon |
AWG26#Silver-plated Teflon |
|
Contact materials |
Precious metal contact |
Wire length |
Standard length 250mm (can be adjusted according to requirements) |
|
|
Case material |
Aluminum alloy |
Dielectric strength |
500VAC@50Hz，6s |
|
|
Protection grade |
IP51 |
Dynamic resistance change value |
<0.01Ω |
|
Features
Mixed power power line, signal line, Ethernet, USB, industrial bus, control line, solenoid valve, induction line, etc.
Standard flange installation form, can be customized hollow shaft installation;
The medium that can pass through are: compressed air, hydrogen, nitrogen, chemical mixture gas, steam, cooling water, hot water, hot oil, petroleum, sulfuric acid, beverage, etc.
Order model description
YD06006（6 in 6 out，6~8mm trachea，Pure pneumatic rotary joint）Size chart
List of Standard Models
|
Model |
Number of the trachea |
Interface size |
Adaptive trachea |
| YD06006 | 6 in 6 out | G1/8" | 6~8mm |
YD06006（6 in 6 out，6~8mm trachea）+6~36 road signal/2A(Adapts to battery valves and induction switches)
List of Standard Models
| Model | Number of the trachea | Interface size |
Adaptive trachea |
Signal approach | Length（mm） |
| YD06006-06 |
6 in 6 out |
G1/8" | 6~8mm | 6 | 14 |
|
YD06006-12 |
6 in 6 out |
G1/8" | 6~8mm | 12 | 21 |
|
YD06006-24s |
6 in 6 out |
G1/8" | 6~8mm | 24 | 35 |
|
YD06006-36s |
6 in 6 out |
G1/8" | 6~8mm | 36 | 52.3 |
|
YD06006-56S |
6 in 6 out |
G1/8" |
6~8mm |
56 | 82 |

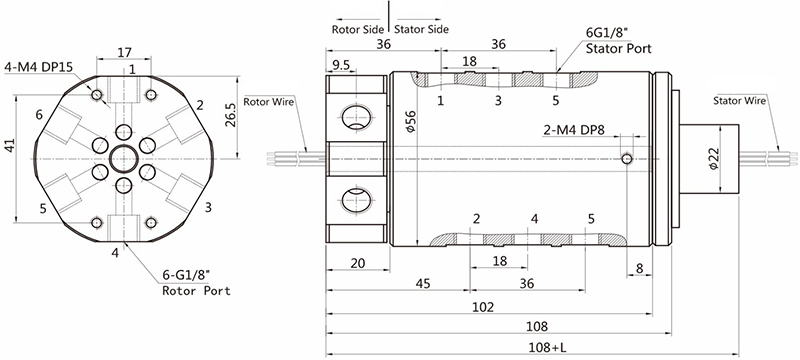

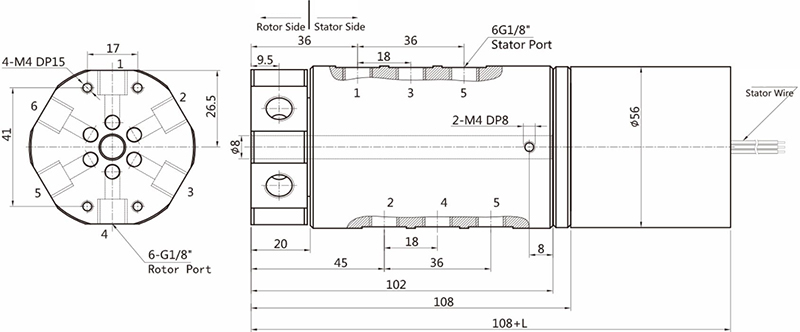

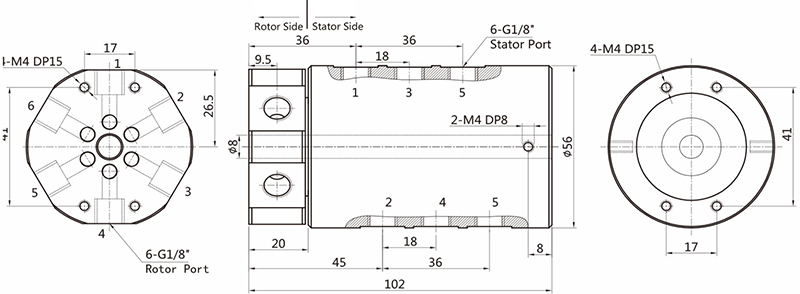

YD06006（6 in 6 out，6~8mm trachea）+Signal（5A）/10A
List of Standard Models
|
Model |
Number of the trachea |
Interface size | Adaptive trachea |
Electricity（10A） road number |
Signal（5A） |
Length（mm） |
|
YD06006-0605 |
6 in 6 out |
G1/8" |
6~8mm |
0 | 6 | 38 |
|
YD06006-0610 |
6 in 6 out |
G1/8" |
6~8mm |
6 | 0 | 38 |
|
YD06006-1205 |
6 in 6 out |
G1/8" |
6~8mm |
0 | 12 | 55 |
|
YD06006-0610-0605 |
6 in 6 out |
G1/8" |
6~8mm |
6 | 6 | 55 |
|
YD06006-1210 |
6 in 6 out |
G1/8" |
6~8mm |
12 | 0 | 55 |
|
YD06006-0610-1205 |
6 in 6 out |
G1/8" |
6~8mm |
6 | 12 | 71.5 |
|
YD06006-1210-0605 |
6 in 6 out |
G1/8" |
6~8mm |
12 | 6 |
71.5 |
|
YD06006-1805 |
6 in 6 out |
G1/8" |
6~8mm |
0 | 18 |
71.5 |
|
YD06006-1810 |
6 in 6 out |
G1/8" |
6~8mm |
18 | 0 |
71.5 |
|
YD06006-0610-1805 |
6 in 6 out |
G1/8" |
6~8mm |
6 | 18 | 88.5 |
|
YD06006-2405 |
6 in 6 out |
G1/8" |
6~8mm |
0 | 24 | 88.5 |
|
YD06006-3005 |
6 in 6 out |
G1/8" |
6~8mm |
0 | 30 | 106 |
|
YD06006-3605 |
6 in 6 out |
G1/8" |
6~8mm |
0 | 36 | 125 |
Technical parameters
|
Number of the trachea |
6 in 6 out |
Maximum pressure |
Positive pressure：1Mpa，vacuo：-100kpa |
|
|
Number of the trachea |
4~8mm trachea G1/8 tooth |
Torque |
<0.4N.m |
|
|
|
Mechanical Technique Indicators |
|
Electrical Technique Indicators |
|
|
Parameter |
Numerical |
Parameter |
Numerical |
|
|
Working life |
20 million turn |
Power |
Signal |
|
|
Highest speed |
Continuous rotation 250/ min, intermittent rotation 1000/min |
Nomina Voltage |
0-240VAC/VDC |
0-240VAC/VDC |
|
Working temperature |
-30℃~80℃ |
Insulation resistance |
<500MΩ/300VDC |
<500MΩ/300VDC |
|
Working humidity |
0-85%RH |
Wire specifications |
AWG26#Silver-plated Teflon |
AWG26#Silver-plated Teflon |
|
Contact materials |
Precious metal contact |
Wire length |
Standard length 250mm (can be adjusted according to requirements) |
|
|
Case material |
Aluminum alloy |
Dielectric strength |
500VAC@50Hz，6s |
|
|
Protection grade |
IP51 |
Dynamic resistance change value |
<0.01Ω |
|
- Contacts：Alice Zhu
- Email：ydslipring@asia-d.com
- Email：ydslipring@hotmail.com
- Tel：0086-15205771557
- Fax：0086-577-62707779
- Skype：ydslipring@hotmail.com
